A20314RNCQ - LITTELFUSE

Description: Rotary Switch 3 Position DP3T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount, Through Hole

Download A20314RNCQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

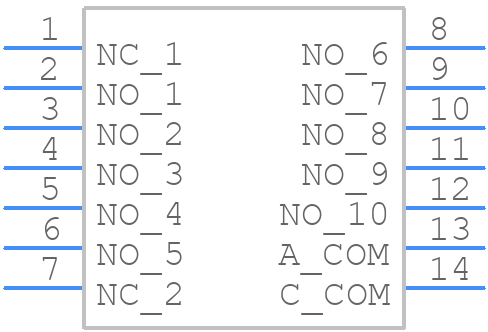

A20314RNCQ - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

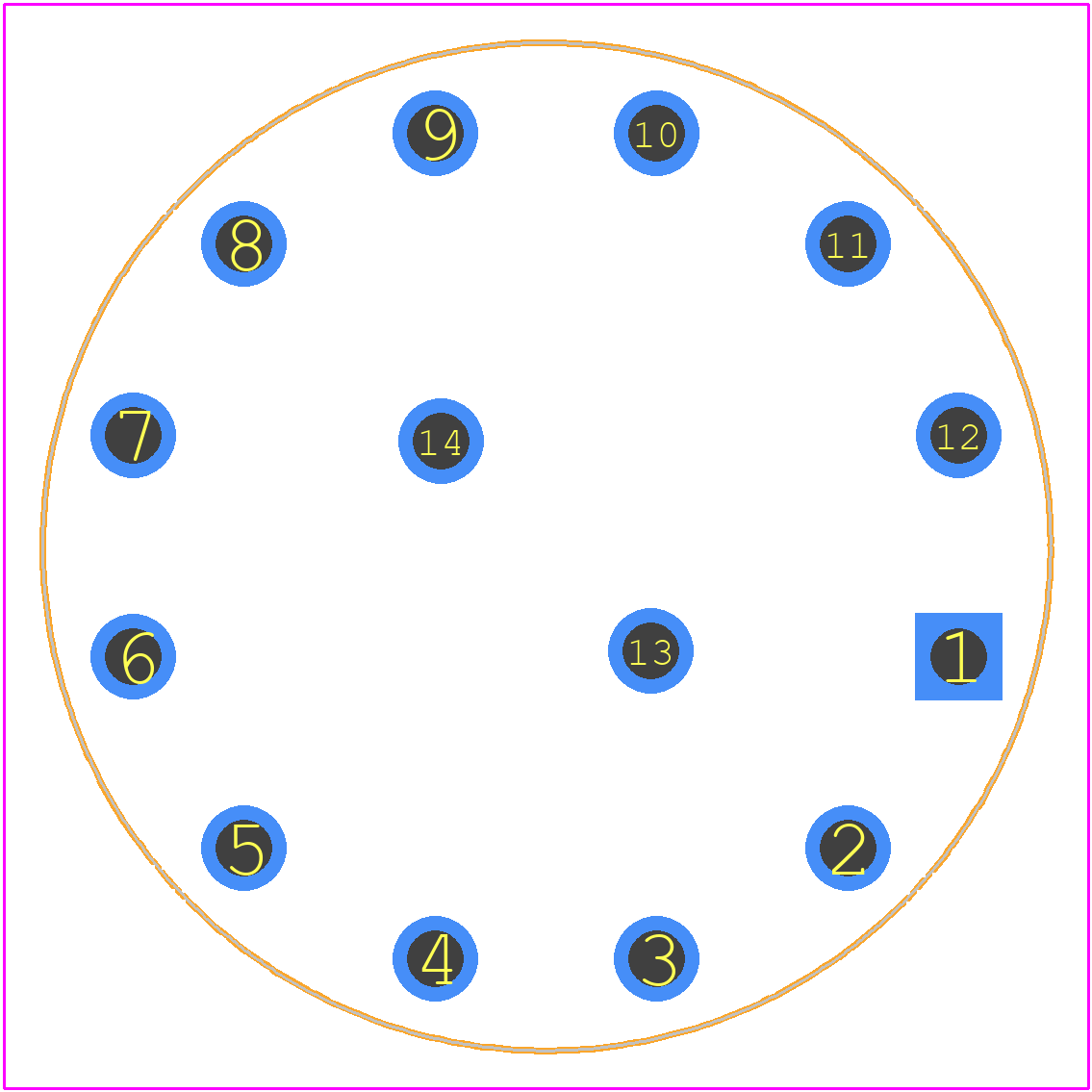

A20314RNCQ - LITTELFUSE PCB footprint - Other - Other - A20303RNCG
click to zoom
3D Models
A20314RNCQ - LITTELFUSE - 3D model - Other - A20303RNCG
click to zoom

A20314RNCQ Details

  • Manufacturer Part Number:

    A20314RNCQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A20314RNCQ Overview

Use the download button to access the A20314RNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2031, or try a keyword search, such as Rotary Switches
