The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) to ensure secure connections.
Yes, the A203SYCQ04 is designed to withstand vibrations up to 10 G (98 m/s²) according to IEC 61373, making it suitable for high-vibration applications.
The A203SYCQ04 is rated for operating temperatures from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH, making it suitable for harsh environments.
The A203SYCQ04 has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
Yes, the A203SYCQ04 is designed for power applications, with a current rating of up to 3 A per contact and a voltage rating of up to 250 V AC/DC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A203SYCQ04 Overview

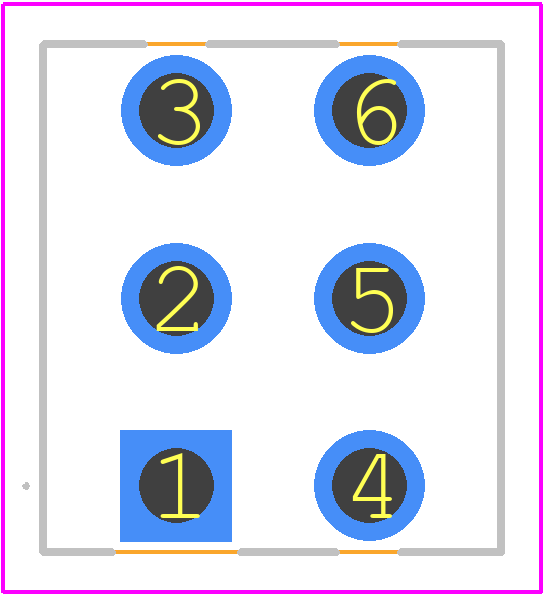

Use the download button to access the A203SYCQ04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A203S,
or try a keyword search, such as Toggle Switches
