- Part Number A205S1MNCQ
- Manufacturer LITTELFUSE
- Pin Count 14
- Part Category Switch
- Package Category Other

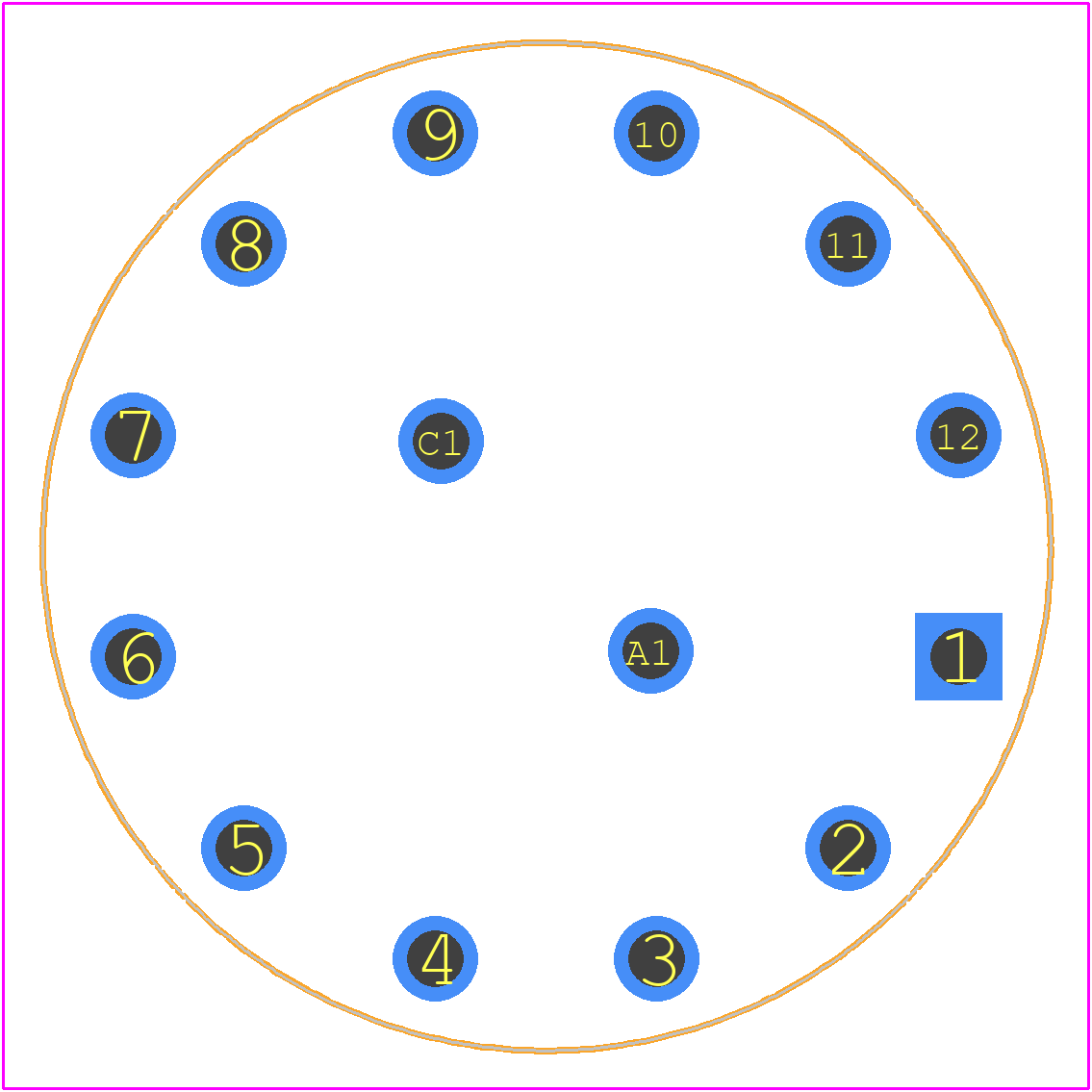

- Footprint Name Other - A20615RNCQ_1
- Released Date Mar 4, 2020
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
A205S1MNCQ Details
-
Manufacturer Part Number:
A205S1MNCQ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Vietnam
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.20
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
6
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
A205S1MNCQ Overview

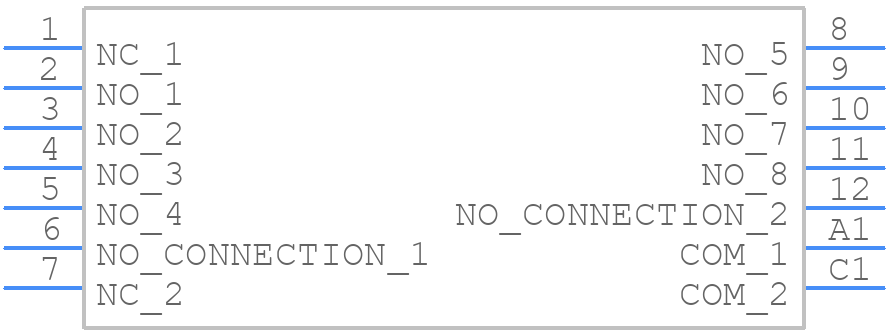

Use the download button to access the A205S1MNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A205S,
or try a keyword search, such as Rotary Switches
