Part Image

A205S1MNCQK - LITTELFUSE

Description: SWITCH ROTARY 5POS 2.5A 125V

Download A205S1MNCQK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

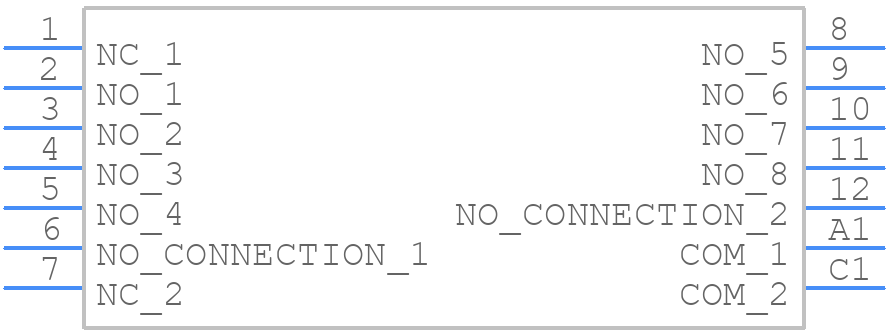

A205S1MNCQK - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

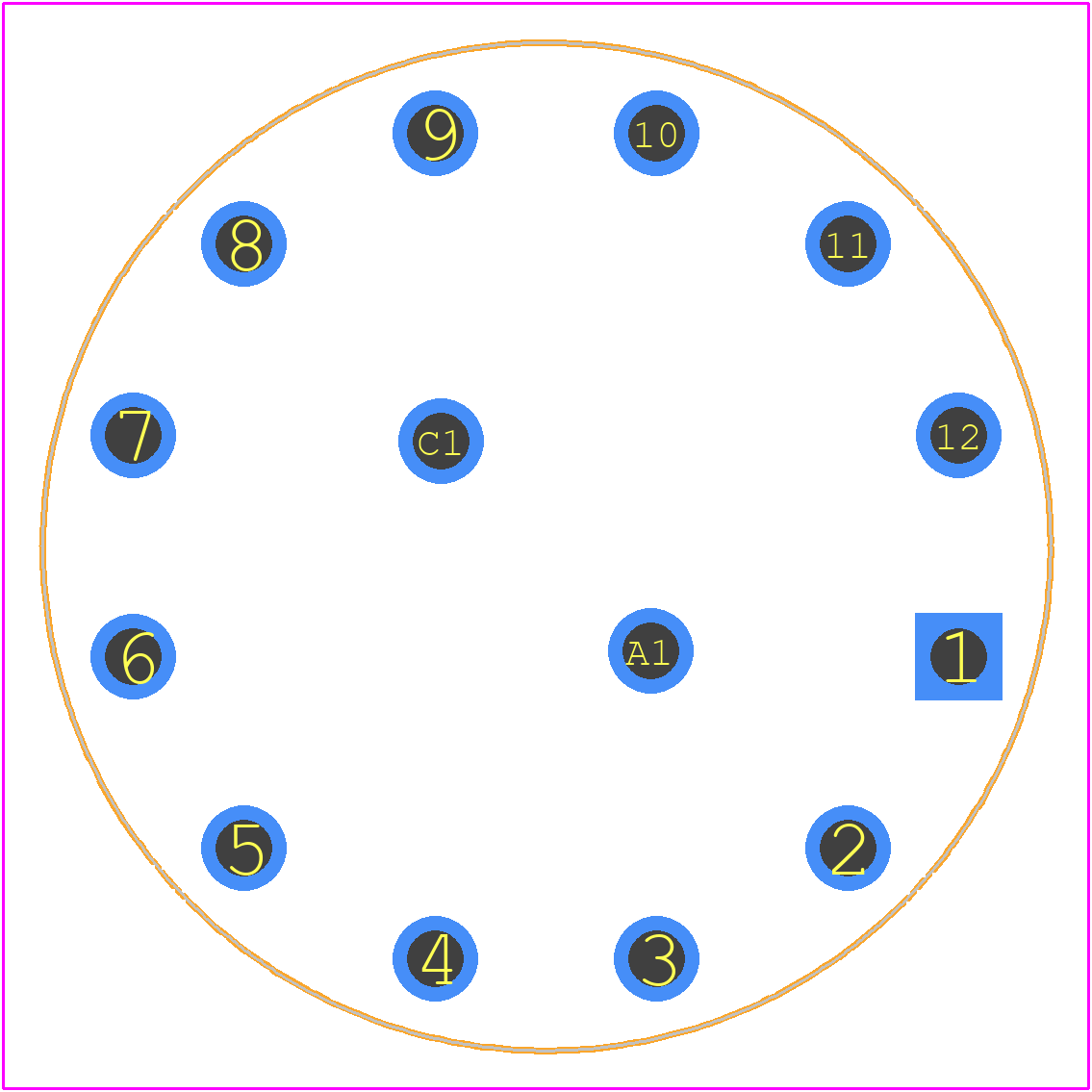

A205S1MNCQK - LITTELFUSE PCB footprint - Other - Other - A20615RNCQ_1
click to zoom
3D Models
A205S1MNCQK - LITTELFUSE - 3D model - Other - A20615RNCQ_1
click to zoom

A205S1MNCQK Details

  • Manufacturer Part Number:

    A205S1MNCQK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A205S1MNCQK Overview

Use the download button to access the A205S1MNCQK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A205S, or try a keyword search, such as Rotary Switches
