A25LQ32AM-F - AMIC Technology

Description: IC, AMIC, A25LQ32AM-F

Download A25LQ32AM-F Model

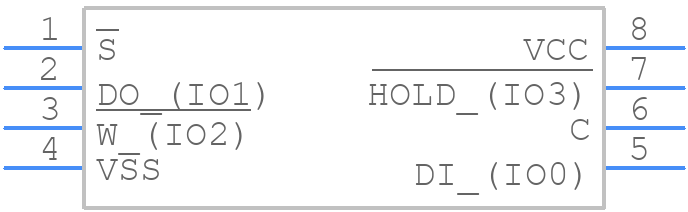

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A25LQ32AM-F - AMIC Technology PCB footprint - Small Outline Packages - Small Outline Packages - SOP 8L
click to zoom
3D Models
A25LQ32AM-F - AMIC Technology  - 3D model - Small Outline Packages - SOP 8L
click to zoom

A25LQ32AM-F Details

  • Manufacturer Part Number:

    A25LQ32AM-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    AMIC Technology

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    100 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

A25LQ32AM-F Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for A25LQ32AM-F is 2.7V to 3.6V.
  • The HOLD pin should be kept high during power-up and power-down sequences to prevent any unwanted data corruption or loss.
  • The maximum clock frequency supported by A25LQ32AM-F is 104 MHz.
  • To ensure data integrity, it is recommended to use an external voltage supervisor or a power-on reset circuit to detect power-down or brownout conditions and prevent any writes to the device during these events.
  • The WP (Write Protect) pin is used to prevent writes to the status register and the memory array. It should be tied high to enable writes or low to disable writes.
