A262A2E's thermal performance is critical. For optimal heat dissipation, OEP recommends a PCB layout with a solid ground plane, thermal vias, and a heat sink attached to the top of the device.
To ensure reliable operation across the full temperature range (-40°C to 125°C), OEP recommends following the recommended operating conditions, using a suitable thermal interface material, and ensuring good airflow around the device.
OEP recommends soldering the A262A2E using a reflow soldering process with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a soldering iron temperature of 350°C.
To troubleshoot common issues, OEP recommends checking the PCB layout, thermal management, and power supply quality. Ensure the device is properly soldered, and the recommended operating conditions are met. Consult the datasheet and application notes for more information.
Yes, OEP recommends taking standard ESD precautions when handling the A262A2E, including using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A262A2E Overview

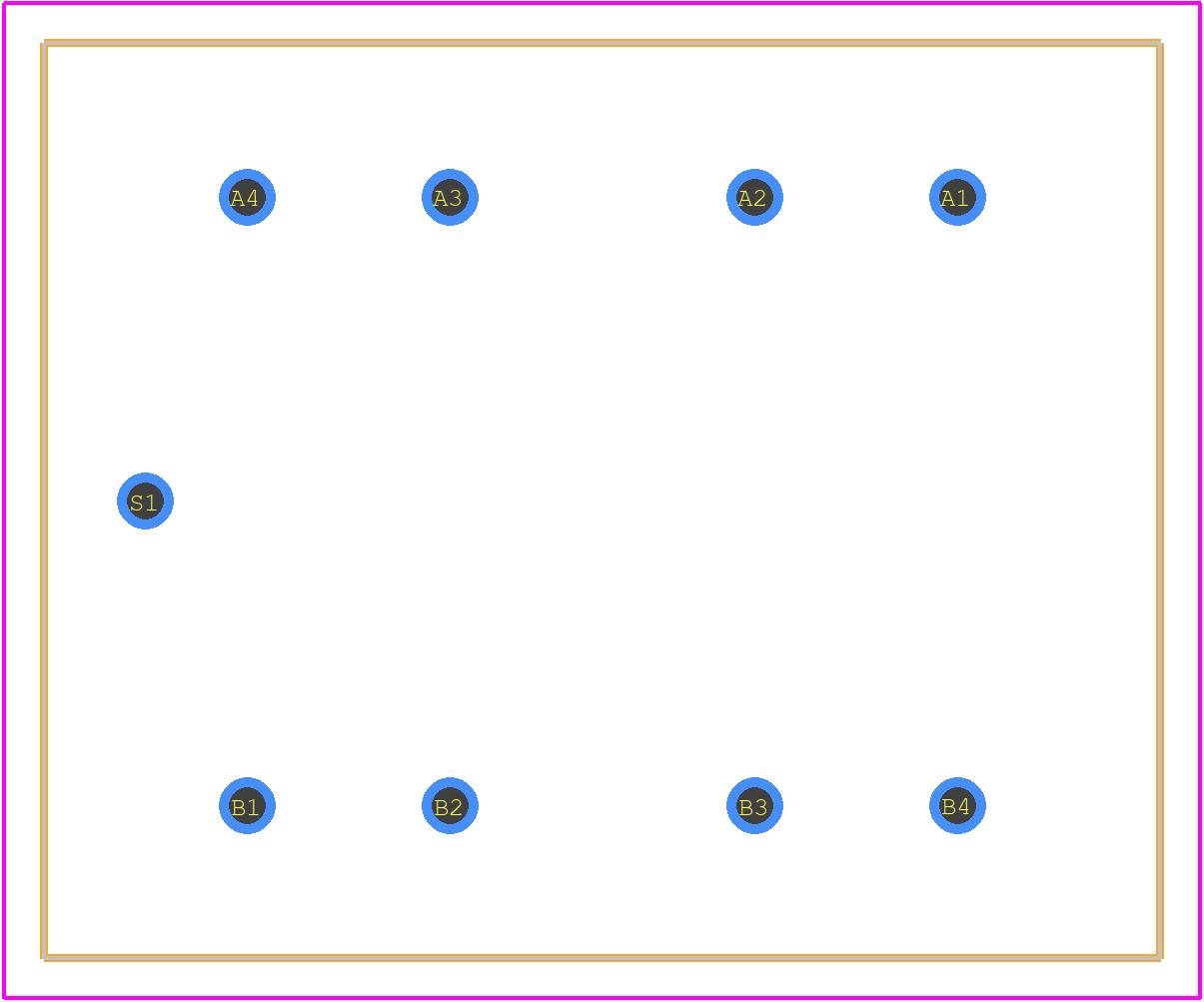

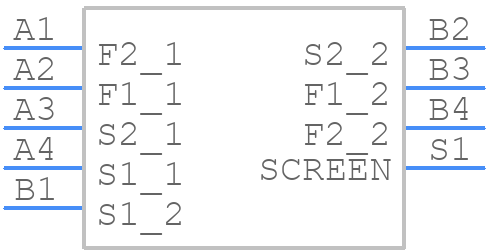

Use the download button to access the A262A2E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A262A,
or try a keyword search, such as Audio Transformers
Suggested Parts
If you searched for A262A2E, you might also be interested in these parts:
