Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the PCB.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance current sense resistor, and minimize noise coupling. Additionally, Allegro recommends using a Kelvin connection to the sense resistor to reduce errors.
Although the datasheet specifies a recommended VCC range of 3.5 V to 5.5 V, Allegro recommends not exceeding 5.25 V to ensure reliable operation and prevent damage to the device.
While the A2982ELWTR-T is rated for operation up to 150°C, Allegro recommends derating the device's current handling capability at higher temperatures to prevent thermal runaway. Consult Allegro's application notes for guidance on high-temperature operation.
To troubleshoot overcurrent protection issues, check the sense resistor value, PCB layout, and noise coupling. Ensure that the sense resistor is properly connected and not overheating. Also, verify that the device is properly configured and that the overcurrent threshold is set correctly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A2982ELWTR-T Overview

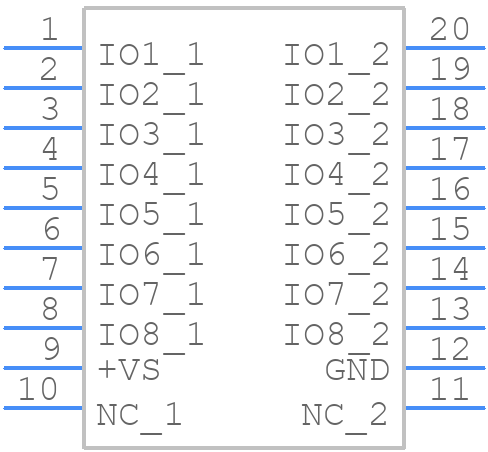

Use the download button to access the A2982ELWTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2982,
or try a keyword search, such as Peripheral Drivers
