A2K1ASP24VDC1.6 - CIT Relay & Switch

Description: Relay and Switch standard 24VDC, 1.6W, 120A, SPST N.O., 26.5x32.0x33.5mm

Download A2K1ASP24VDC1.6 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A2K1ASP24VDC1.6 model

Email notifications will be applied after download.

Send part feedback

Symbol

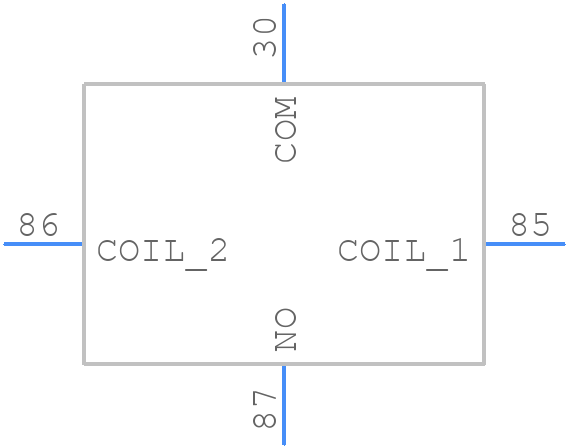

A2K1ASP24VDC1.6 - CIT Relay & Switch - PCB symbol

PCB Footprints

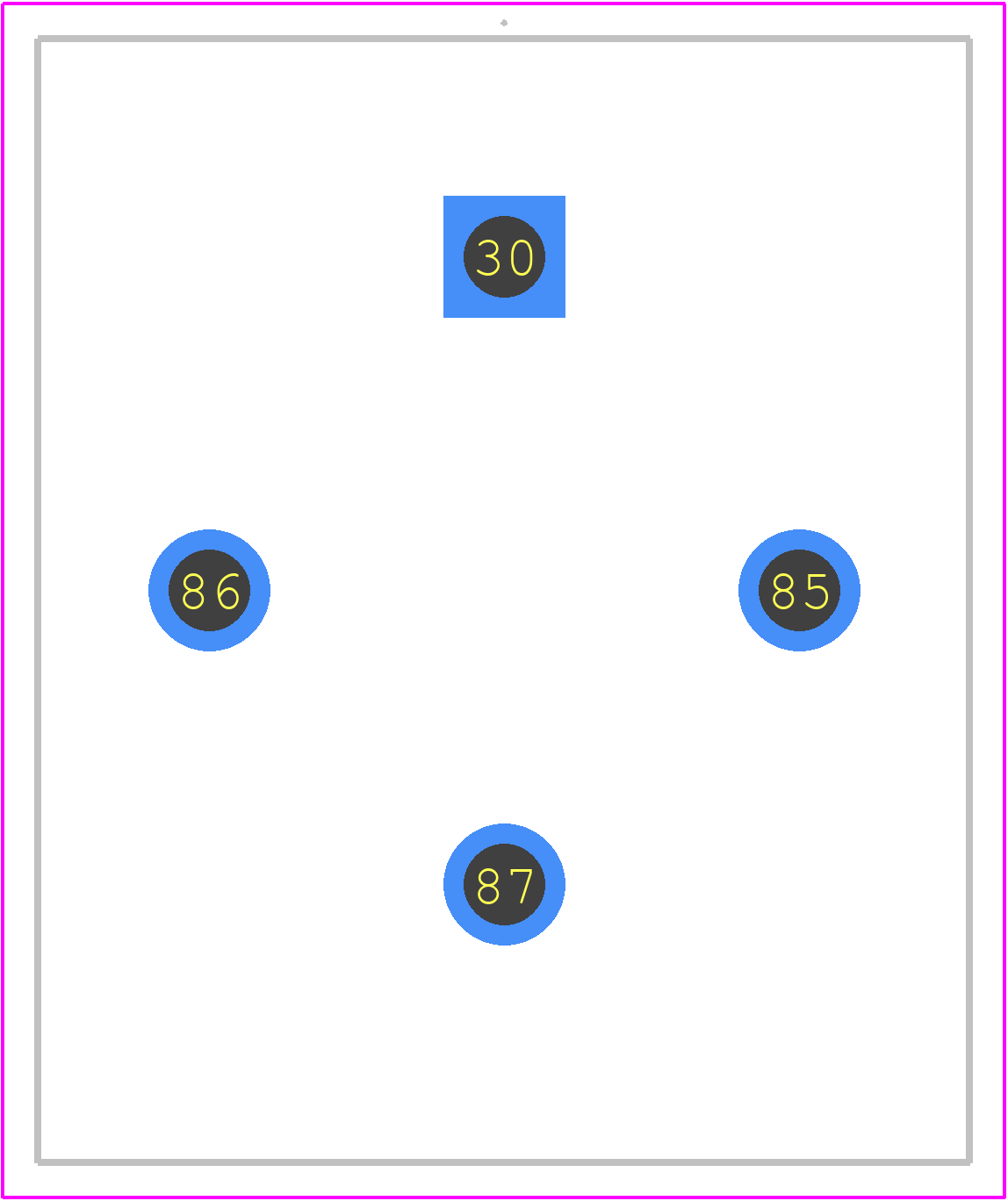

A2K1ASP24VDC1.6 - CIT Relay & Switch PCB footprint - Other - Other - A2K1ASP24VDC1.6-4

3D Models

A2K1ASP24VDC1.6 - CIT Relay & Switch - 3D model - Other - A2K1ASP24VDC1.6-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for A2K1ASP24VDC1.6
Part Number A2K1ASP24VDC1.6
Manufacturer CIT Relay & Switch
Pin Count 4
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - A2K1ASP24VDC1.6-4
Released Date Feb 9, 2023
Last Modified Date Mar 25, 2024 7:02 AM UTC
Pinout / Pin List Click Here (Member Only)

A2K1ASP24VDC1.6 Details

Manufacturer Part Number:
A2K1ASP24VDC1.6
Manufacturer:
CIT Relay & Switch

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

A2K1ASP24VDC1.6 Overview

Use the download button to access the A2K1ASP24VDC1.6 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A2K1A, or try a keyword search, such as Electric Fuses
