A30303RNCQ - LITTELFUSE

Description: Rotary Switch 3 Position 3P3T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount, Through Hole

Download A30303RNCQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

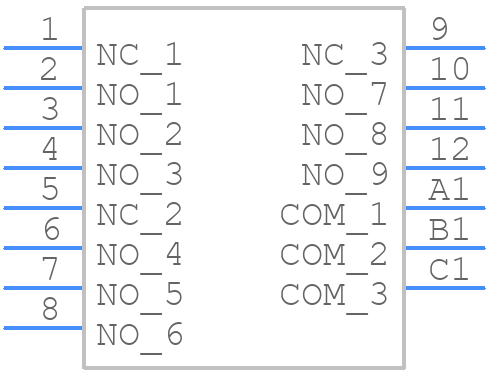

A30303RNCQ - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

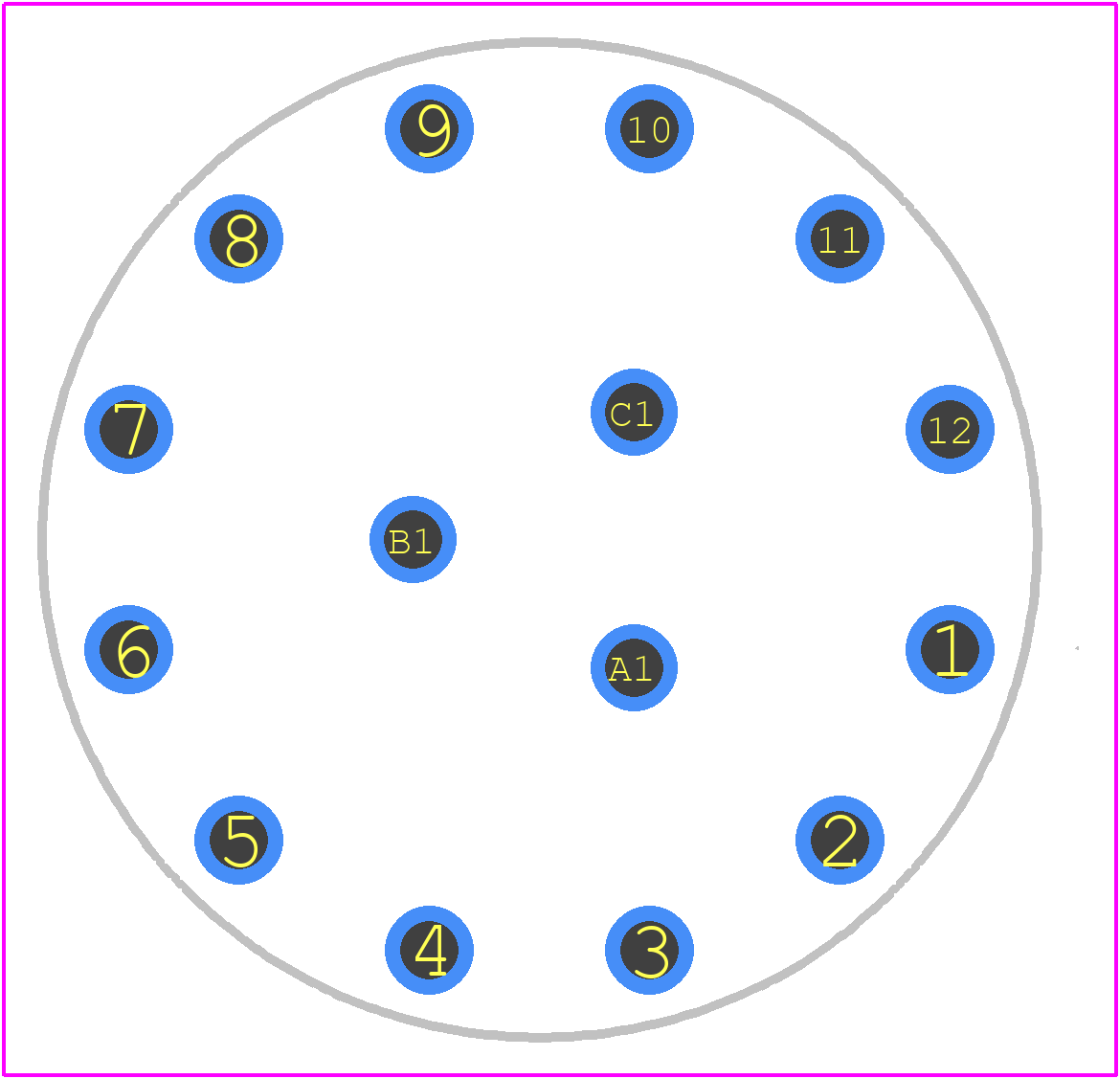

A30303RNCQ - LITTELFUSE PCB footprint - Other - Other - A30405RNCQ
click to zoom
3D Models
A30303RNCQ - LITTELFUSE - 3D model - Other - A30405RNCQ
click to zoom

A30303RNCQ Details

  • Manufacturer Part Number:

    A30303RNCQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A30303RNCQ Overview

Use the download button to access the A30303RNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3030, or try a keyword search, such as Rotary Switches
