A30405RNCQ - LITTELFUSE

A30405RNCQ Details

• Manufacturer Part Number:

  A30405RNCQ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  6

• Actuator Length:

  0.5 inch

• Actuator Material:

  GLASS FILLED POLYAMID66

• Actuator Type:

  FLAT TYPE

• Additional Feature:

  STANDARDS: CUL; UL

• Body Height:

  12.83 mm

• Body Length or Diameter:

  26.19 mm

• Bushing Diameter:

  0.386 inch

• Bushing Length:

  0.275 inch

• Bushing Type:

  3/8-32

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  2.5A@125VAC

• Contact Current(AC)-Max:

  2.5 A

• Contact Current(DC)-Max:

  0.35 A

• Contact (DC) Max Rating R Load:

  0.35A@125VDC

• Contact Resistance:

  0.02 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  125 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  15000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  GLASS FILLED POLYAMIDE66

• Indexing Angle:

  30 deg

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  4

• Number of Switch Sections:

  3

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

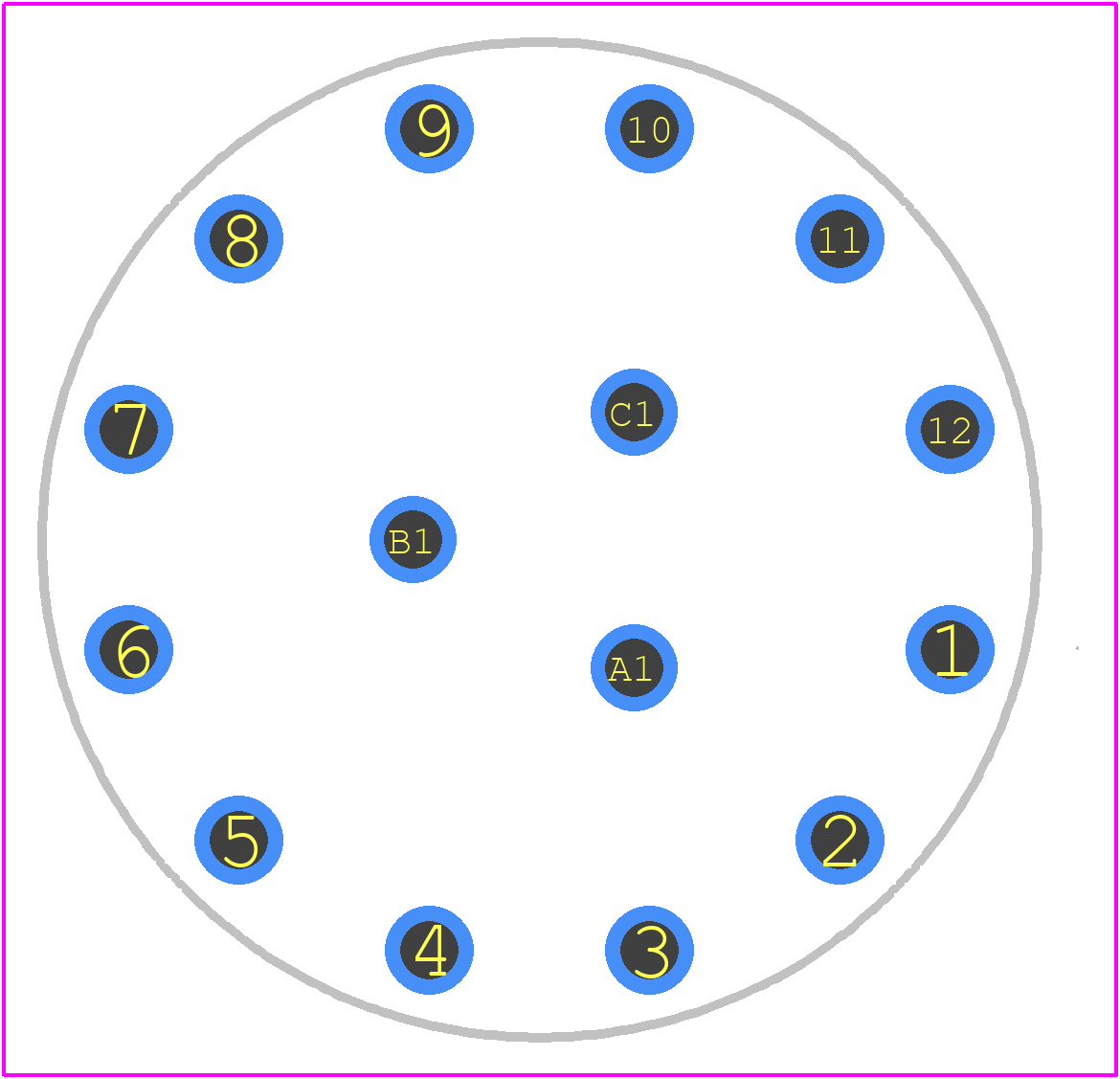

• PCB Hole Count:

  12

• Packing Method:

  BOX

• Solderability:

  HAND

• Surface Mount:

  NO

• Switch Action:

  LATCHED

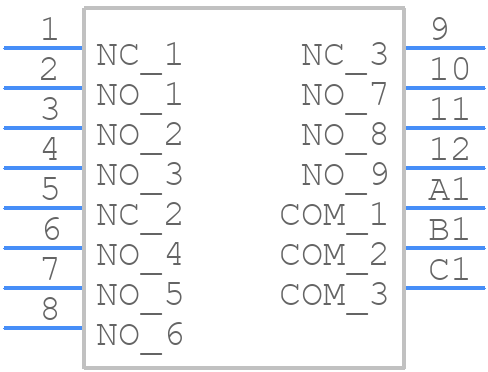

• Switch Function:

  3P4T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  SILVER

• Terminal Length:

  0.153 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
