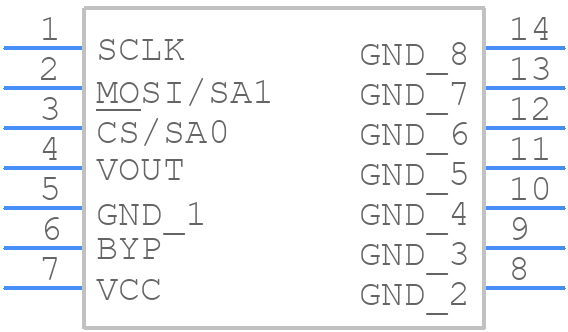

A33003LLUATR - Allegro Microsystems

A33003LLUATR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the A33003LLUATR?
  Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
• How do I properly handle the A33003LLUATR during assembly and storage to prevent damage?
  Allegro recommends following standard ESD handling procedures, storing the devices in a dry, cool place, and avoiding mechanical stress or bending. Refer to Allegro's Handling and Storage Guidelines document for more information.
• What is the maximum allowable voltage on the VCC pin, and how does it affect the device's performance?
  The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. Operating the device at the recommended voltage range (3.3V to 5V) ensures optimal performance and reliability.
• How does the A33003LLUATR handle overcurrent conditions, and what protection mechanisms are built-in?
  The A33003LLUATR has built-in overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms. In the event of an overcurrent condition, the device will limit the current to prevent damage. The OTP will shut down the device if the junction temperature exceeds 170°C.
• What is the recommended operating temperature range for the A33003LLUATR, and how does temperature affect its performance?
  The recommended operating temperature range for the A33003LLUATR is -40°C to 125°C. Temperature affects the device's performance, with increased temperature resulting in reduced accuracy and increased power consumption. Refer to the datasheet for temperature-related specifications and characteristics.
