A good thermal design should include a solid copper plane on the PCB to dissipate heat. The device's thermal pad should be connected to this plane using multiple vias. Additionally, the PCB should have a sufficient number of layers to ensure good thermal conductivity.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design with a secure mounting system for the device. Additionally, the device's pins should be properly soldered and secured to prevent damage from vibration.
The recommended decoupling capacitors for the A3935KLQTR-T are 0.1 μF and 10 μF ceramic capacitors, placed as close to the device as possible. These capacitors help to filter out noise and ensure stable operation.
To troubleshoot issues with the device's output current, check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the device is properly configured and that the output current is within the specified range. Also, check for any signs of overheating or damage to the device.
Operating the device beyond the recommended temperature range can lead to reduced performance, decreased lifespan, and potential damage to the device. It is recommended to operate the device within the specified temperature range to ensure reliable operation and to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3935KLQTR-T Overview

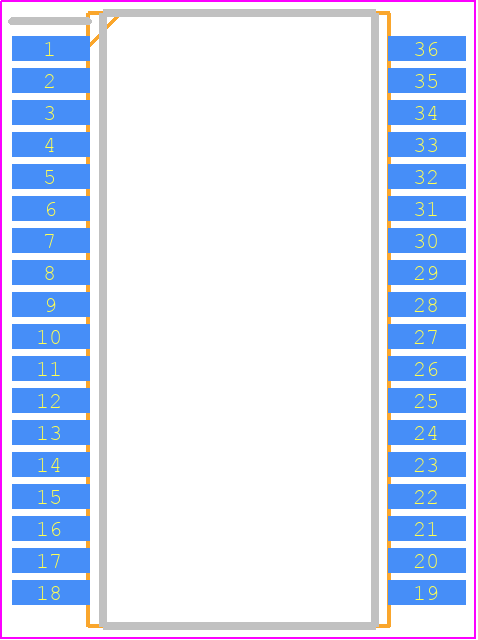

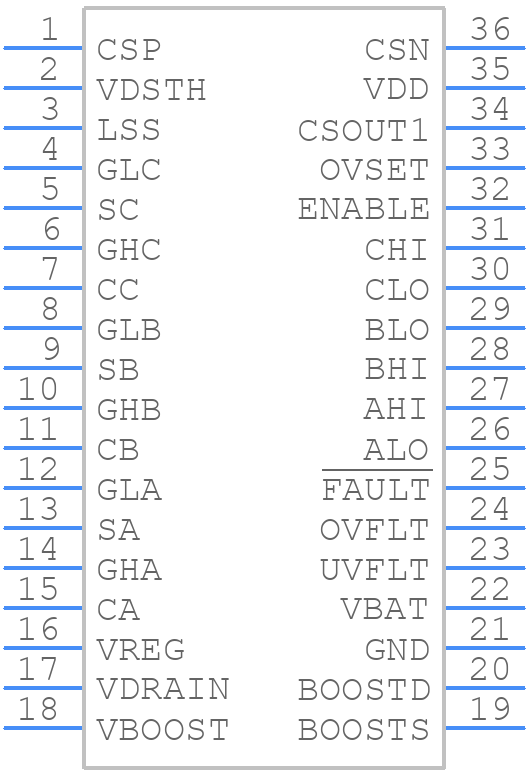

Use the download button to access the A3935KLQTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3935,
or try a keyword search, such as MOSFET Drivers
