- Part Number A3B-18PA-2DS(51)
- Manufacturer Hirose
- Pin Count 18
- Part Category Connector
- Package Category Header, Unshrouded - Right Angle PTH Pin

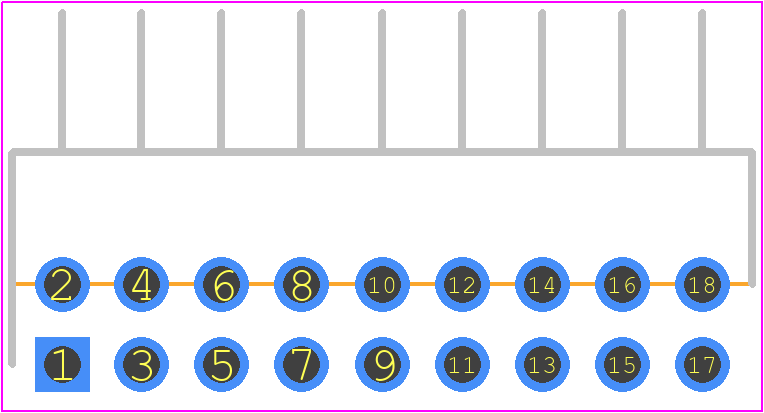

- Footprint Name Header, Unshrouded - Right Angle PTH Pin - A3B-18PA-2DS
- Released Date Jan 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A3B-18PA-2DS(51) Details
-
Manufacturer Part Number:
A3B-18PA-2DS(51)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
BOARD CONNECTOR
A3B-18PA-2DS(51) Frequently Asked Questions (FAQs)
-
The recommended torque for the screws is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) according to Hirose's application notes.
-
Yes, the A3B-18PA-2DS(51) connector is designed to withstand vibrations up to 10 Hz to 2,000 Hz, with an amplitude of 1.5 mm, according to Hirose's vibration test standards.
-
The A3B-18PA-2DS(51) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's recommended to consult Hirose's environmental testing standards and application notes for specific use cases.
-
The A3B-18PA-2DS(51) connector is rated for a minimum of 500 mating cycles, according to Hirose's testing standards.
-
Yes, the A3B-18PA-2DS(51) connector is designed for automated assembly and can be used with pick-and-place machines and other automation equipment.
Trust Checks
Expert Contribution
System Verified
Community Approved
A3B-18PA-2DS(51) Overview
Use the download button to access the A3B-18PA-2DS(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3B-1,
or try a keyword search, such as Headers and Edge Type Connectors
