A3B-50PA-2DS(51) - Hirose

Description: Hirose A3B, 2mm Pitch, 50 Way, 2 Row, Right Angle PCB Header, Through Hole

Download A3B-50PA-2DS(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A3B-50PA-2DS(51) - Hirose - PCB symbol
click to zoom
PCB Footprints

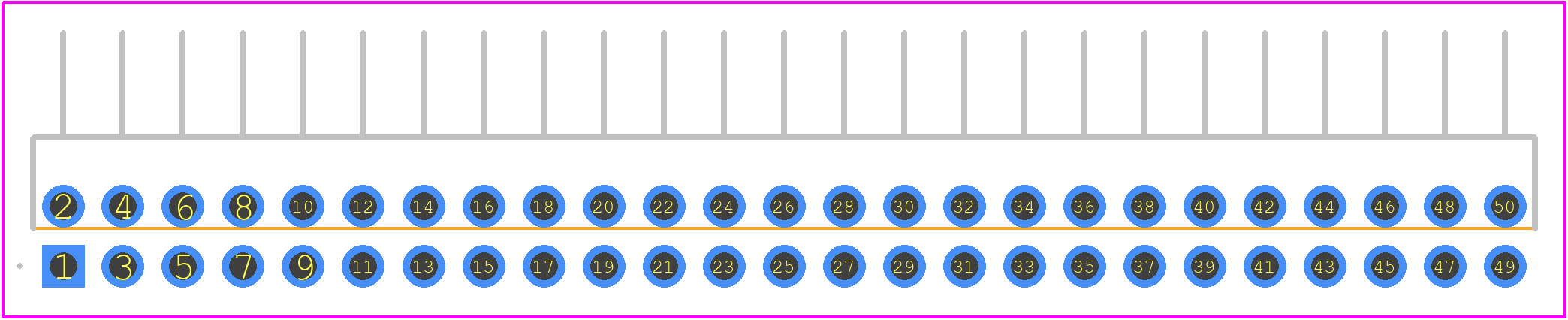

A3B-50PA-2DS(51) - Hirose PCB footprint - Other - Other - A3B-50PA-2DS(51)-5
click to zoom
3D Models
A3B-50PA-2DS(51) - Hirose - 3D model - Other - A3B-50PA-2DS(51)-5
click to zoom

A3B-50PA-2DS(51) Details

  • Manufacturer Part Number:

    A3B-50PA-2DS(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

A3B-50PA-2DS(51) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the A3B-50PA-2DS(51) connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration.
  • The operating temperature range for the A3B-50PA-2DS(51) connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the A3B-50PA-2DS(51) connector is designed for automated assembly and inspection systems, with a tape-and-reel packaging option available.
  • The mating cycle rating for the A3B-50PA-2DS(51) connector is 500 cycles minimum.
