- Part Number A3C-16P-2DSA(30)
- Manufacturer Hirose
- Pin Count 16
- Part Category Connector
- Package Category Header, Vertical

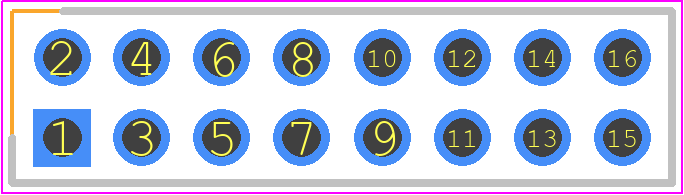

- Footprint Name Header, Vertical - A3C-16P-2DSA(30)
- Released Date Feb 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A3C-16P-2DSA(30) Details
-
Manufacturer Part Number:
A3C-16P-2DSA(30)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
BOARD CONNECTOR
A3C-16P-2DSA(30) Frequently Asked Questions (FAQs)
-
The recommended mating cycle for the A3C-16P-2DSA(30) connector is 500 cycles.
-
Yes, the A3C-16P-2DSA(30) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
-
The operating temperature range for the A3C-16P-2DSA(30) connector is -40°C to 105°C.
-
Yes, the A3C-16P-2DSA(30) connector is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
-
The typical contact resistance for the A3C-16P-2DSA(30) connector is 10mΩ or less.
Trust Checks
Expert Contribution
System Verified
Community Approved
A3C-16P-2DSA(30) Overview
Use the download button to access the A3C-16P-2DSA(30) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3C-1,
or try a keyword search, such as Headers and Edge Type Connectors
