A3C-18DA-2DSA(71) - Hirose

Description: Hirose A3C Series 2mm 18 Way 2 Row Straight PCB Socket Through Hole Board to Wire

Download A3C-18DA-2DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A3C-18DA-2DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

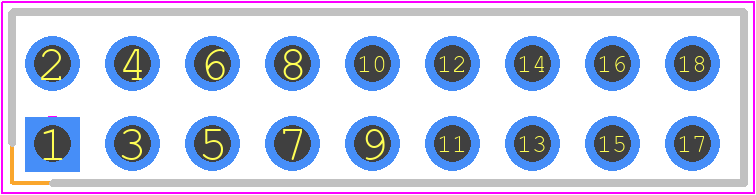

A3C-18DA-2DSA(71) - Hirose PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - A3C-18DA-2DSA(71)
click to zoom
3D Models
A3C-18DA-2DSA(71) - Hirose - 3D model - Header, Receptacle - Straight PTH Box - A3C-18DA-2DSA(71)
click to zoom

A3C-18DA-2DSA(71) Details

  • Manufacturer Part Number:

    A3C-18DA-2DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

A3C-18DA-2DSA(71) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the A3C-18DA-2DSA(71) connector is 500 cycles.
  • Yes, the A3C-18DA-2DSA(71) connector is designed to withstand high-vibration environments and is suitable for use in applications such as industrial machinery, automotive systems, and more.
  • The operating temperature range for the A3C-18DA-2DSA(71) connector is -40°C to 105°C.
  • Yes, the A3C-18DA-2DSA(71) connector is designed to be compatible with automated assembly processes, making it suitable for high-volume production applications.
  • The typical lead time for delivery of the A3C-18DA-2DSA(71) connector varies depending on the region and quantity, but it is typically around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3C-18DA-2DSA(71) Overview

Use the download button to access the A3C-18DA-2DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3C-1, or try a keyword search, such as Headers and Edge Type Connectors
