- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for A3C-50P-2DSA(30)
- Part Number A3C-50P-2DSA(30)
- Manufacturer Hirose
- Pin Count 50
- Part Category Connector
- Package Category Header, Vertical

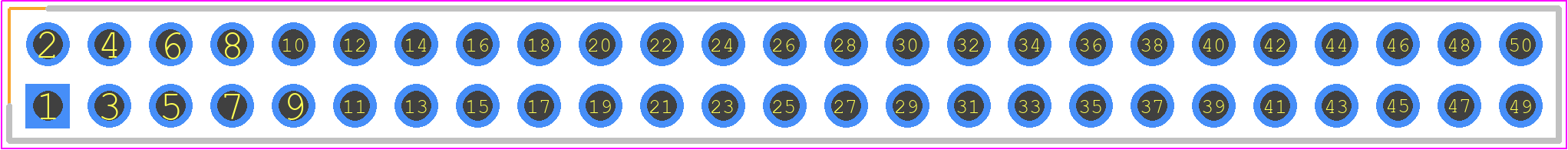

- Footprint Name Header, Vertical - A3C-50P-2DSA(30)
- Released Date Apr 12, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A3C-50P-2DSA(30) Details
-
Manufacturer Part Number:
A3C-50P-2DSA(30)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
BOARD CONNECTOR
A3C-50P-2DSA(30) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
-
Yes, the A3C-50P-2DSA(30) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, and 3 mm amplitude.
-
Yes, the connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
The operating temperature range for the A3C-50P-2DSA(30) is -40°C to 85°C (-40°F to 185°F).
-
Yes, the connector is designed to accommodate cables with diameters ranging from 1.5 mm to 3.5 mm (0.06 in to 0.14 in).
Trust Checks
Community Provided
System Verified
Community Approved
A3C-50P-2DSA(30) Overview
Use the download button to access the A3C-50P-2DSA(30) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3C-5,
or try a keyword search, such as Headers and Edge Type Connectors
