Part Image

A3E-44PA-2DSA(71) - Hirose

Description: Connector Header Through Hole 44 position 0.079" (2.00mm)

Download A3E-44PA-2DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A3E-44PA-2DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

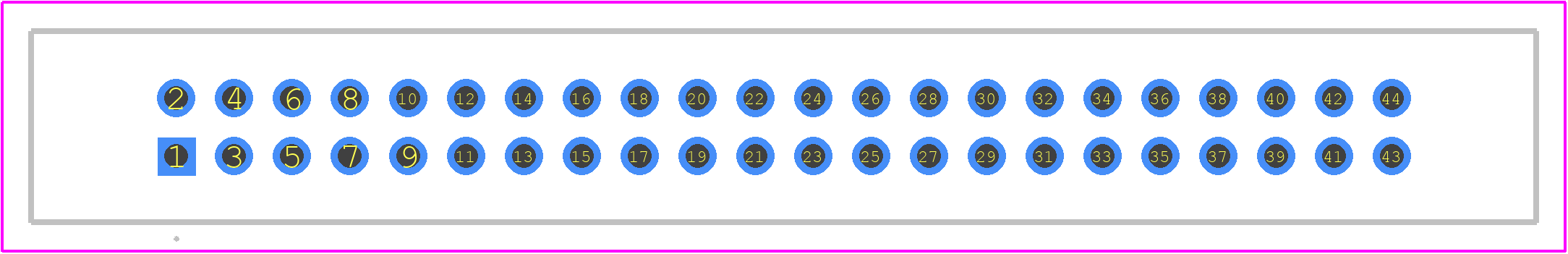

A3E-44PA-2DSA(71) - Hirose PCB footprint - Other - Other - A3E-44PA-2DSA(71)-2
click to zoom
3D Models
A3E-44PA-2DSA(71) - Hirose - 3D model - Other - A3E-44PA-2DSA(71)-2
click to zoom

A3E-44PA-2DSA(71) Details

  • Manufacturer Part Number:

    A3E-44PA-2DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

A3E-44PA-2DSA(71) Frequently Asked Questions (FAQs)

  • The operating temperature range of the A3E-44PA-2DSA(71) connector is -40°C to 105°C.
  • Yes, the A3E-44PA-2DSA(71) connector is designed to withstand high vibrations and is suitable for applications that require high reliability in harsh environments.
  • The mating cycle of the A3E-44PA-2DSA(71) connector is 500 cycles.
  • Yes, the A3E-44PA-2DSA(71) connector is designed to be compatible with automated assembly processes, making it suitable for high-volume production.
  • The recommended torque for the A3E-44PA-2DSA(71) connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3E-44PA-2DSA(71) Overview

Use the download button to access the A3E-44PA-2DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3E-4, or try a keyword search, such as Headers and Edge Type Connectors
