A good PCB layout for the A4405KLPTR-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Allegro provides a recommended PCB layout in their application note AN296050.
Proper thermal management involves providing a heat sink or thermal pad on the device, ensuring good airflow, and keeping the device away from heat sources. The device's thermal resistance (RθJA) is 25°C/W, and the maximum junction temperature is 150°C.
Allegro recommends using a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 25V or higher, placed as close to the VIN pin as possible, to filter the input voltage and reduce noise.
To troubleshoot issues with the A4405KLPTR-T, check the input voltage, output current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes or noise. Consult Allegro's application notes and technical support resources for further guidance.
Yes, the A4405KLPTR-T is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in an IATF 16949 certified facility. However, it's essential to consult Allegro's documentation and technical support to ensure the device meets the specific requirements of your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4405KLPTR-T Overview

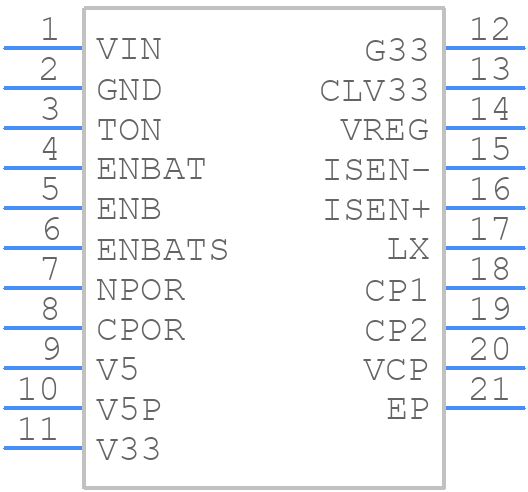

Use the download button to access the A4405KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4405,
or try a keyword search, such as Switching Regulator or Controllers
