A4926KLPTR-T - Allegro Microsystems

Description: Automotive DC Half Bridge MOSFET Gate Driver

Download A4926KLPTR-T Model

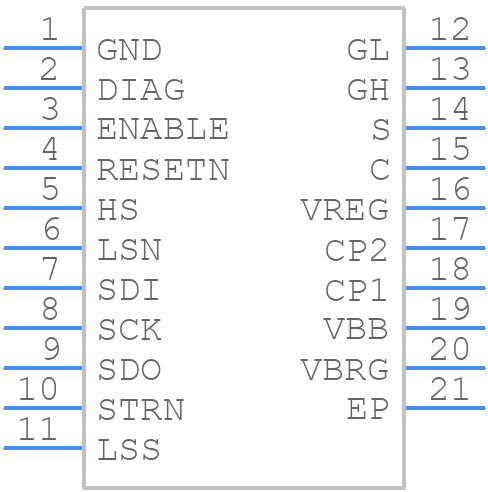

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A4926KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP
click to zoom
3D Models
A4926KLPTR-T - Allegro Microsystems  - 3D model - Other - LP,20-Lead TSSOP
click to zoom

A4926KLPTR-T Details

  • Manufacturer Part Number:

    A4926KLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    50 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.215 µs

  • Turn-on Time:

    0.205 µs

  • Width:

    4.4 mm

A4926KLPTR-T Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended to dissipate heat efficiently. The device should be placed near a thermal pad or a heat sink to improve thermal performance.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's current output and voltage rating at high temperatures.
  • Use a shielded cable or a twisted pair for the output stage, and consider adding EMI filters or chokes to reduce electromagnetic interference. Also, ensure proper grounding and decoupling to minimize radiated emissions.
  • Yes, but ensure the device is properly secured to the PCB using a robust mounting method, and consider adding mechanical dampening or vibration isolation to minimize the effects of vibration on the device's performance.
  • Use an oscilloscope to monitor the output waveform, and check for proper input voltage, current, and temperature conditions. Also, verify the device's configuration and programming to ensure correct operation.
