Allegro recommends a PCB layout with a solid ground plane, minimal thermal vias, and a heat sink attached to the exposed pad to achieve optimal thermal performance.
To ensure reliable operation in high-vibration environments, Allegro recommends using a robust PCB design, secure component mounting, and conformal coating to prevent mechanical stress and moisture ingress.
The maximum allowable voltage on the VCC pin during power-up is 16V, as specified in the datasheet. Exceeding this voltage may damage the device.
Yes, the A4935KJP-T can be used in battery-powered applications. However, it's essential to consider the device's quiescent current, shutdown current, and power-down modes to minimize power consumption and extend battery life.
To troubleshoot issues with the device's output current, Allegro recommends checking the input voltage, output voltage, and current sense resistor values, as well as verifying the PCB layout and component connections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4935KJP-T Overview

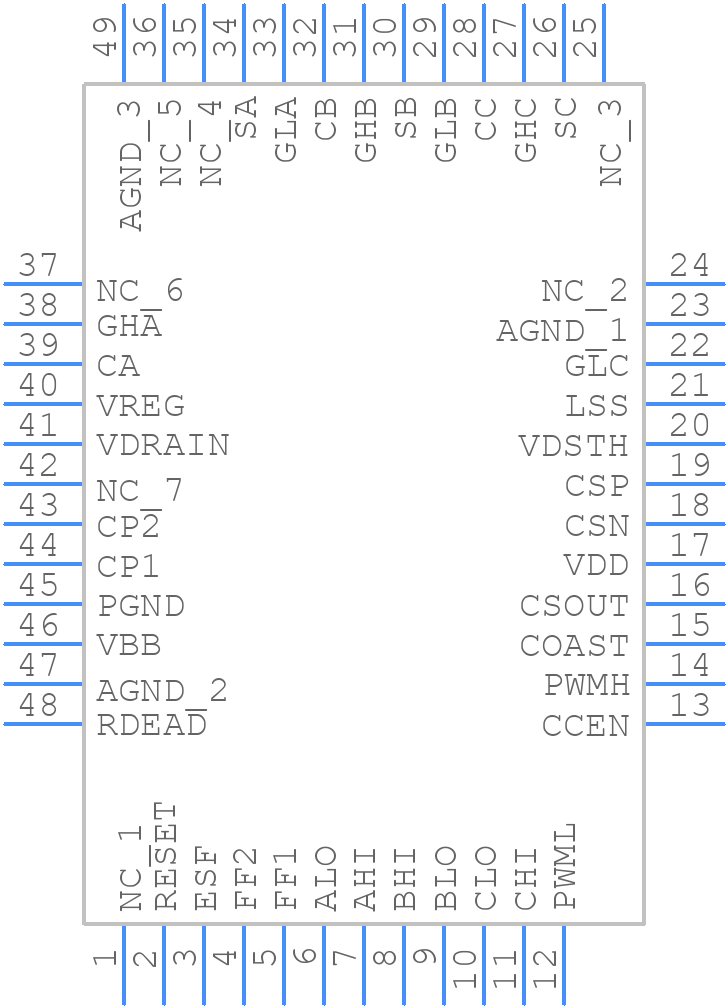

Use the download button to access the A4935KJP-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4935,
or try a keyword search, such as MOSFET Drivers
