A6217KEJTR-J - Allegro Microsystems

Description: Automotive Grade Constant Current PWM Buck Reg LED Driver

Download A6217KEJTR-J Model

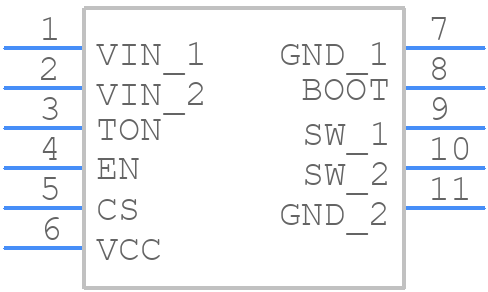

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A6217KEJTR-J - Allegro Microsystems PCB footprint - Other - Other - EJ,10-Pin DFN with Exposed Thermal Pad and Wettable Flank
click to zoom
3D Models
A6217KEJTR-J - Allegro Microsystems  - 3D model - Other - EJ,10-Pin DFN with Exposed Thermal Pad and Wettable Flank
click to zoom

A6217KEJTR-J Details

  • Manufacturer Part Number:

    A6217KEJTR-J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    48 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

A6217KEJTR-J Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance current sense resistor, and minimize noise coupling. Additionally, Allegro recommends using a Kelvin connection to the sense resistor to reduce errors.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, Allegro recommends limiting the voltage to 5V to ensure reliable operation and minimize the risk of damage.
  • While the A6217KEJTR-J is rated for operation up to 150°C, Allegro recommends derating the device's performance at high temperatures. Consult Allegro's application notes for guidance on thermal derating and high-temperature operation.
  • Allegro recommends following a systematic troubleshooting approach, starting with verifying proper power supply and input voltage, then checking for correct pin connections and signal integrity. Consult Allegro's application notes and technical support resources for additional guidance.
