A6217KLJTR-1-T - Allegro Microsystems

Description: Automotive Grade Constant Current PWM Buck Reg LED Driver

Download A6217KLJTR-1-T Model

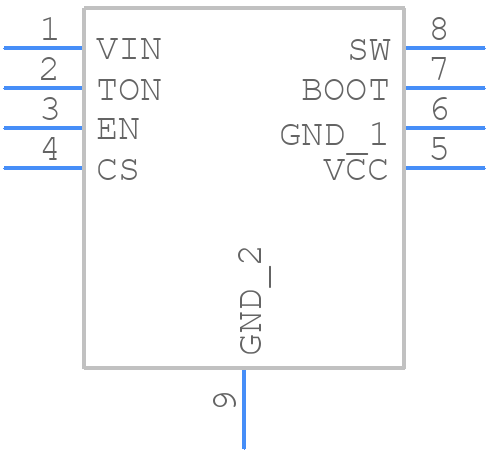

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

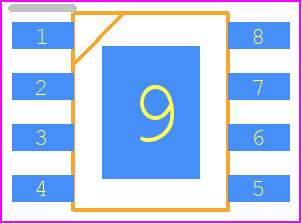

A6217KLJTR-1-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom
3D Models
A6217KLJTR-1-T - Allegro Microsystems  - 3D model - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom

A6217KLJTR-1-T Details

  • Manufacturer Part Number:

    A6217KLJTR-1-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    48 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

A6217KLJTR-1-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A6217KLJTR-1-T is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sinking, using a thermal interface material, and keeping the device away from heat sources.
  • The recommended gate drive voltage for the A6217KLJTR-1-T is between 4.5V and 15V.
  • Yes, the A6217KLJTR-1-T is suitable for high-reliability applications, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
  • To protect the device from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
