A625308AM-70SUF - AMIC Technology

Description: Power Supply Range: 4.5V to 5.5V Access times: 70 ns A625308A-S series: Operating: 35mA (max.) Standby: 10μA (max.) A625308A-SI/SU series: Operating: 35mA (max.) Standby: 15μA (max.) Extended operating temperature range: 0°C to 70°C for - S series, -25°C to 85°C for -SI series, -40°C to 85°C for SU series

Download A625308AM-70SUF Model

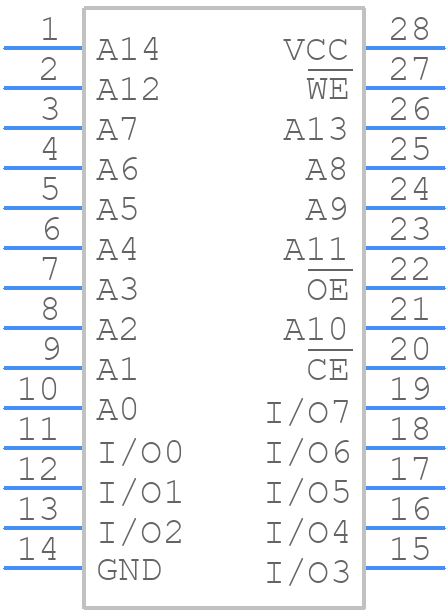

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

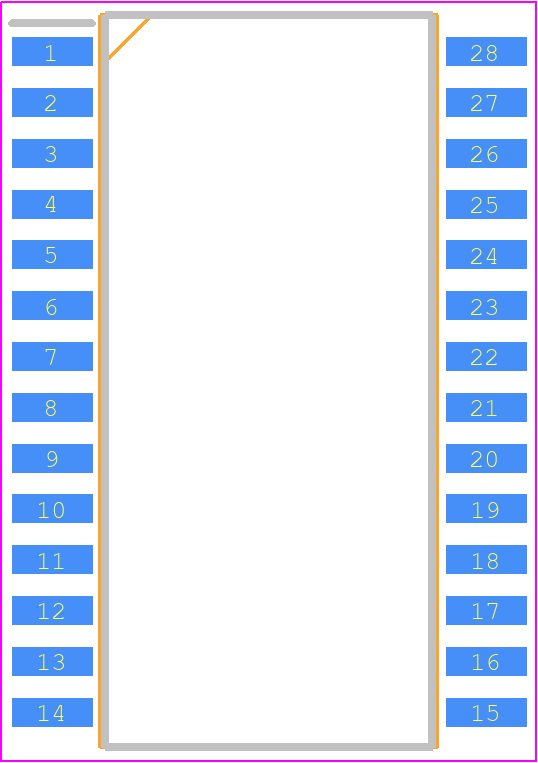

A625308AM-70SUF - AMIC Technology PCB footprint - Small Outline Packages - Small Outline Packages - SOP (W.B.) 28L Outline Dimensions ...
click to zoom
3D Models
A625308AM-70SUF - AMIC Technology  - 3D model - Small Outline Packages - SOP (W.B.) 28L Outline Dimensions ...
click to zoom

A625308AM-70SUF Details

  • Manufacturer Part Number:

    A625308AM-70SUF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    AMIC Technology

  • YTEOL:

    4

  • Access Time-Max:

    70 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    18.11 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    APPLICATION SPECIFIC SRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.85 mm

  • Standby Current-Max:

    0.000003 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    8.41 mm

A625308AM-70SUF Frequently Asked Questions (FAQs)

  • A good PCB layout for the A625308AM-70SUF should consider signal integrity, power integrity, and thermal management. Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure good thermal dissipation through the use of thermal vias and a heat sink if necessary.
  • Proper power supply decoupling is crucial for the A625308AM-70SUF. Use a low-ESR capacitor (e.g., 0.1uF) close to the VCC pin, and a bulk capacitor (e.g., 10uF) further away. Ensure the power supply is stable and within the recommended voltage range (1.7V to 3.6V).
  • The A625308AM-70SUF can support clock frequencies up to 70MHz, but the actual frequency limit may depend on the specific application, PCB layout, and signal quality. It's recommended to consult with AMIC Technology or a qualified engineer for specific guidance.
  • The A625308AM-70SUF has a power-down mode to reduce power consumption. To enter power-down mode, assert the PD pin low. To wake up, assert the PD pin high and wait for the device to stabilize (typically 10us). Ensure the wake-up sequence is properly implemented to avoid data corruption or other issues.
  • The A625308AM-70SUF has a maximum junction temperature of 150°C. Ensure good thermal dissipation through the use of thermal vias, a heat sink, and a PCB design that allows for good airflow. Avoid overheating, which can lead to reduced performance, reliability issues, or even device failure.
