SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.06 mm
Supply Voltage-Max:
50 V
Supply Voltage-Min:
6 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
A6264KLYTR-T Frequently Asked Questions (FAQs)
Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
The A6264KLYTR-T has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary.
Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher, placed as close as possible to the VCC pin to filter out noise and ensure stable operation.
The A6264KLYTR-T has a low-power mode that can be enabled by pulling the EN pin low. In this mode, the device consumes reduced power and can be used to conserve energy in battery-powered applications.
The output pins of the A6264KLYTR-T are rated for a maximum voltage of 6 V, which should not be exceeded to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A6264KLYTR-T Overview

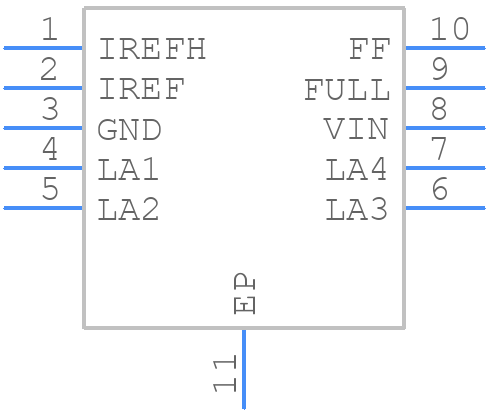

Use the download button to access the A6264KLYTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6264,
or try a keyword search, such as Display Drivers
