A6271KLPTR-T-1 footprint, schematic symbol and 3D model by Allegro Microsystems

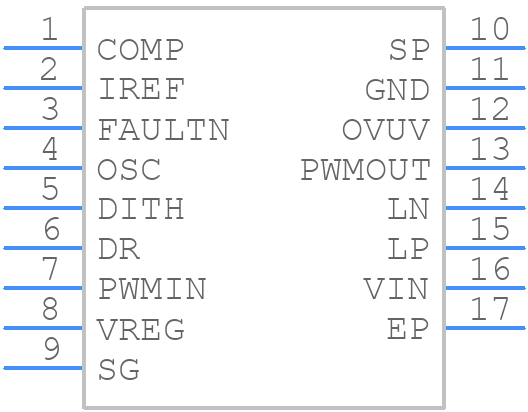

Symbol

PCB Footprints

3D Models

A6271KLPTR-T-1 Details

Allegro provides a recommended PCB layout guide in their application note AN296050, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and thermal dissipation.
The A6271KLPTR-T-1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane.
Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure stable operation of the device.
The A6271KLPTR-T-1 has an internal calibration circuit that can be accessed through the CAL pin. Allegro provides a calibration procedure in their datasheet, which involves applying a specific voltage sequence to the CAL pin to calibrate the device.
The maximum allowable voltage on the output pins of the A6271KLPTR-T-1 is 5.5V, which is the maximum rating for the device. Exceeding this voltage can cause damage to the device.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the A6271KLPTR-T-1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A6271, or try a keyword search, such as Display Drivers
