Allegro provides a recommended PCB layout in their application note AN296050, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The A6801SEPTR-T has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 170°C. To handle this, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Additionally, consider implementing a thermal monitoring and shutdown circuit in your system design.
Although the datasheet specifies a recommended operating voltage range of 5.5 V to 50 V, the absolute maximum rating for the VCC pin is 60 V. However, it's essential to note that operating the device at voltages above 50 V may affect its performance and reliability.
The sense resistor value depends on the desired current sensing range and the device's internal gain. Allegro provides a sense resistor calculation tool on their website, which can help you determine the optimal sense resistor value for your specific application.
The A6801SEPTR-T has a power-up sequence that ensures the output voltage is stable before the device becomes active. During power-down, the device enters a low-power state, and the output voltage is disabled. It's essential to follow the recommended power-up and power-down sequences to ensure proper operation and prevent damage to the device or other components in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A6801SEPTR-T Overview

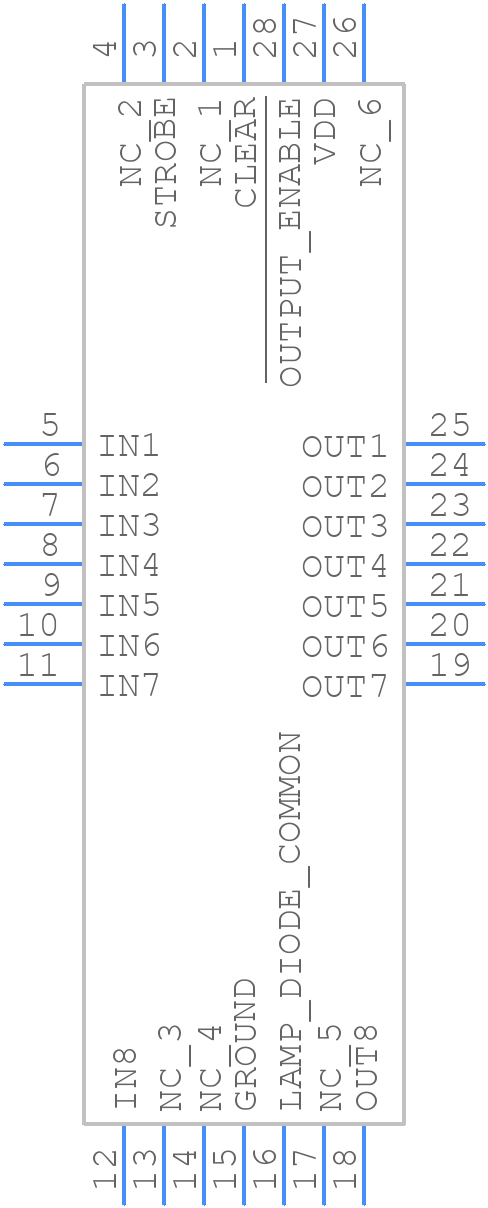

Use the download button to access the A6801SEPTR-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like A6801,
or try a keyword search, such as Peripheral Drivers
