A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the PCB layers as thin as possible and using thermal vias can improve thermal performance.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense lines as short as possible, using a Kelvin connection, and minimizing noise coupling. Additionally, calibrating the device and using a high-precision resistor can improve accuracy.
A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
The A6810SA-T has a built-in overcurrent detection feature. When an overcurrent condition is detected, the device will latch off and require a power cycle to reset. It's essential to design a robust overcurrent protection scheme, including a suitable current limit and a fault detection mechanism.
The A6810SA-T is rated for operation from -40°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A6810SA-T Overview

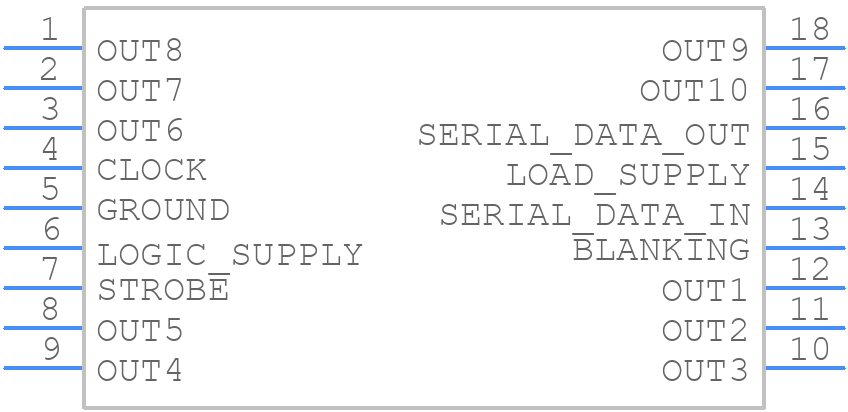

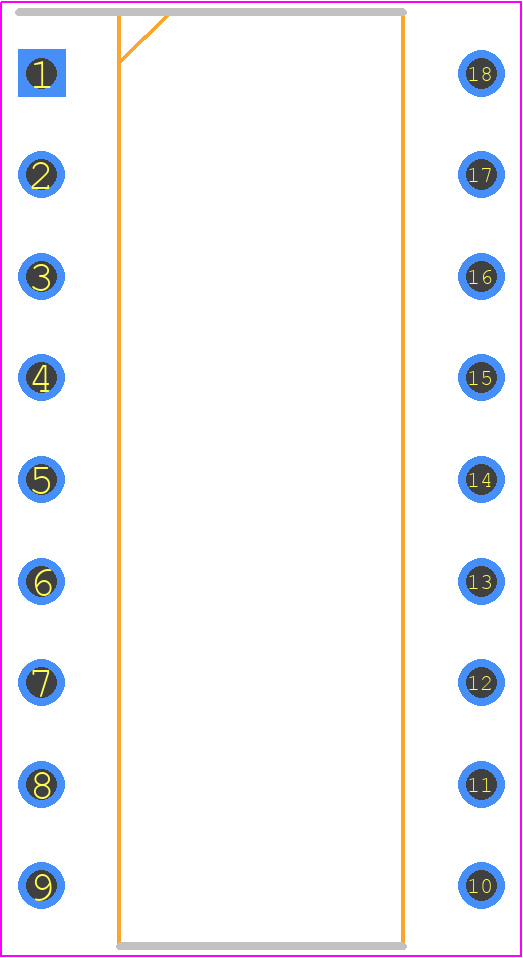

Use the download button to access the A6810SA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6810,
or try a keyword search, such as Display Drivers
