A good PCB layout for the A6821SA-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
When selecting an inductor for the A6821SA-T, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the maximum output current of the device. Also, ensure the inductor's physical size and shape fit the available PCB space.
The A6821SA-T is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. In general, it's recommended to derate the device's performance at high temperatures to ensure reliable operation.
Yes, the A6821SA-T is designed to withstand vibrations and can be used in high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot issues with the A6821SA-T, start by checking the input voltage, output voltage, and current levels. Verify that the device is properly configured and that the PCB layout is correct. Use an oscilloscope to monitor the device's signals and look for signs of overheating, such as excessive current consumption or voltage drops.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A6821SA-T Overview

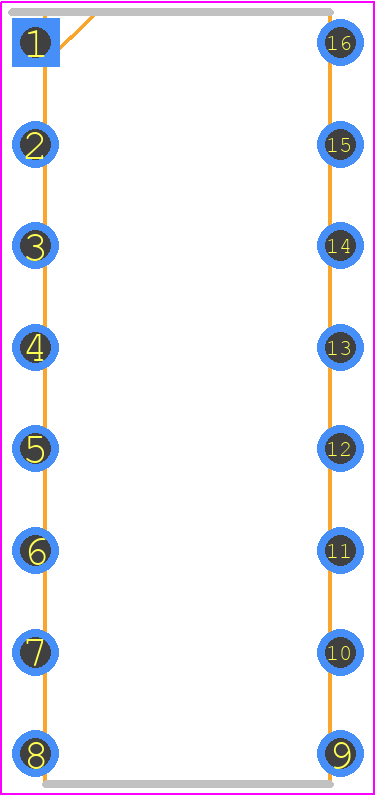

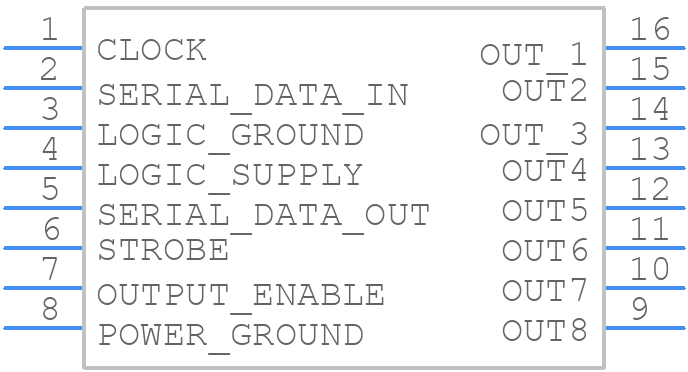

Use the download button to access the A6821SA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6821,
or try a keyword search, such as Peripheral Drivers
