A6833SEPTR-T footprint, schematic symbol and 3D model by Allegro Microsystems

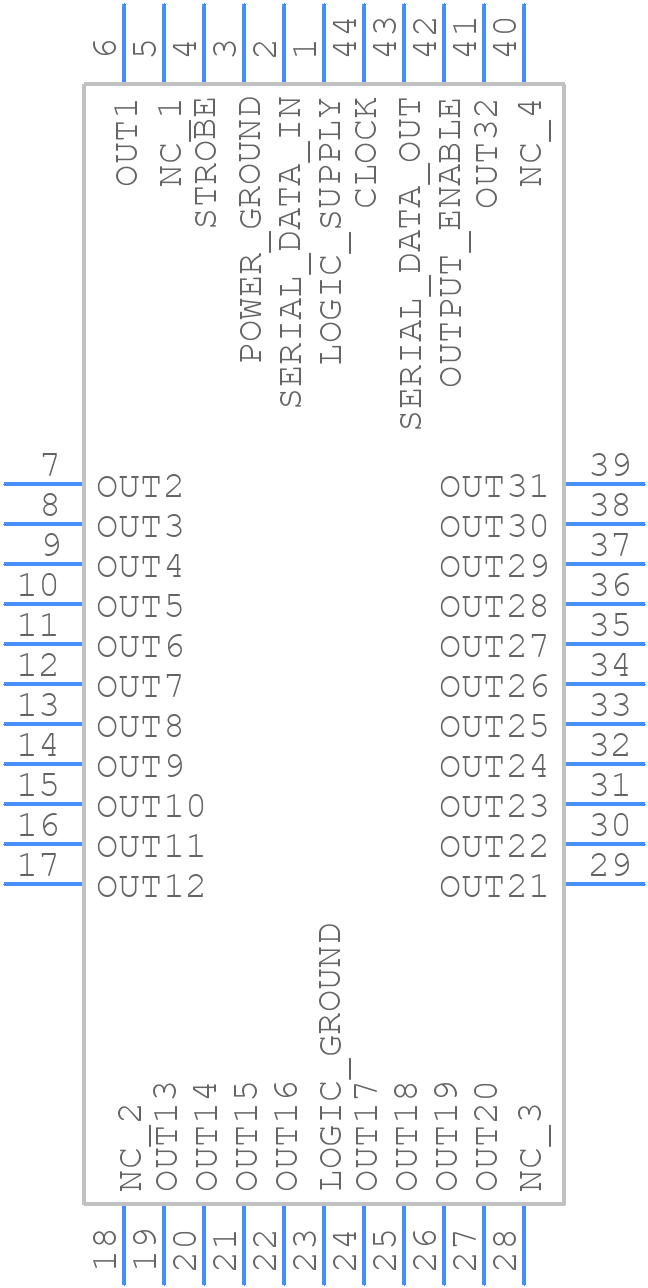

Symbol

click to zoom

PCB Footprints

A6833SEPTR-T - Allegro Microsystems PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 44 PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for A6833SEPTR-T
Part Number A6833SEPTR-T
Manufacturer Allegro Microsystems
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - 44 PLCC
Released Date Jun 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

A6833SEPTR-T Details

Manufacturer Part Number:
A6833SEPTR-T
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
LPCC
Package Description:
LEAD FREE, PLASTIC, MS-018AC, LCC-44
Pin Count:
44
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Allegro MicroSystems LLC
YTEOL:
0
Interface IC Type:
SIPO BASED PERIPHERAL DRIVER
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e3
Length:
16.59 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Output Current Flow Direction:
SINK
Output Current-Max:
0.1 A
Output Peak Current Limit-Nom:
0.125 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
OTHER
Terminal Finish:
MATTE TIN
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40
Width:
16.59 mm

A6833SEPTR-T Frequently Asked Questions (FAQs)

A multi-layer PCB with a solid ground plane and thermal vias is recommended to dissipate heat efficiently. The device should be placed near a thermal pad or a heat sink to improve thermal performance.
To ensure EMC, use a shielded cable for the output stage, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the output lines. Additionally, follow proper PCB layout and grounding practices.
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input filter capacitor. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
Use a voltage regulator or a transient voltage suppressor (TVS) to protect the device from overvoltage conditions. For overcurrent protection, use a fuse or a current-sensing resistor with a shutdown circuit to disconnect the power supply in case of an overcurrent event.
The recommended operating temperature range for the A6833SEPTR-T is -40°C to 150°C. However, the device can operate up to 175°C for short periods of time. Ensure proper thermal management to prevent overheating.

Trust Checks

Community Provided

System Verified

Community Approved

A6833SEPTR-T Overview

Use the download button to access the A6833SEPTR-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A6833, or try a keyword search, such as Peripheral Drivers
