A6841SLWTR-20-T - Allegro Microsystems

Description: Allegro Microsystems A6841SLWTR-20-T Motor Driver IC 20-Pin, SOIC W

Download A6841SLWTR-20-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

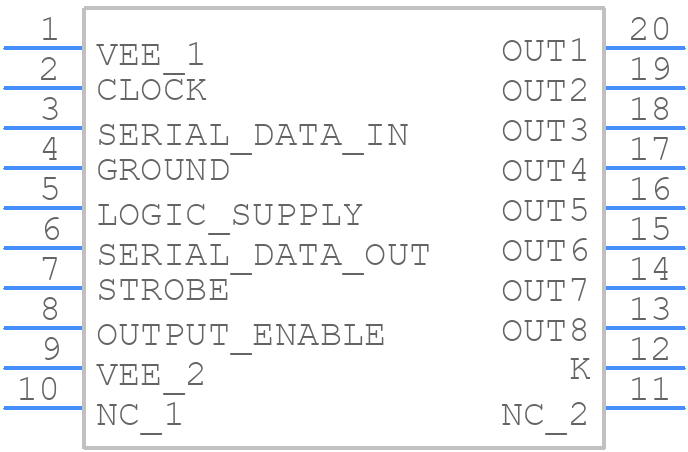

A6841SLWTR-20-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A6841SLWTR-20-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LW, 20-Pin SOICW
click to zoom
3D Models
A6841SLWTR-20-T - Allegro Microsystems - 3D model - Small Outline Packages - Package LW, 20-Pin SOICW
click to zoom

A6841SLWTR-20-T Details

  • Manufacturer Part Number:

    A6841SLWTR-20-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AC, SOIC-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Additional Feature:

    SPLIT SUPPLY OPERATION POSSIBLE

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

A6841SLWTR-20-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A6841SLWTR-20-T involves keeping the sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the motor to minimize lead length. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to choose a sense resistor value that results in a sense voltage of around 50-100 mV at the maximum expected motor current. The datasheet provides a formula to calculate the sense resistor value based on the motor current and desired sense voltage.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage can damage the device. It's recommended to use a voltage regulator or a voltage clamp to ensure the VCC pin voltage remains within the specified range.
  • The A6841SLWTR-20-T has a built-in overcurrent detection feature that can be used to detect overcurrent conditions. The device provides an overcurrent flag (OCF) that can be used to trigger an interrupt or a shutdown of the motor driver. The overcurrent threshold can be set using an external resistor.
  • The thermal resistance of the A6841SLWTR-20-T package is typically around 30°C/W (junction-to-ambient) and 10°C/W (junction-to-case). This information is usually provided in the device's thermal characteristics section of the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A6841SLWTR-20-T Overview

Use the download button to access the A6841SLWTR-20-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6841, or try a keyword search, such as Peripheral Drivers
