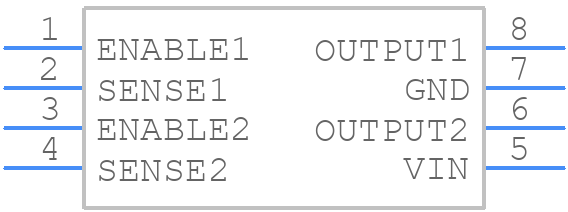

A6850KLTR-T - Allegro Microsystems

Description: Automotive Dual Channel Switch Interface IC

Download A6850KLTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A6850KLTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - L,8-pin SOICN
click to zoom
3D Models
A6850KLTR-T - Allegro Microsystems  - 3D model - Small Outline Packages - L,8-pin SOICN
click to zoom

A6850KLTR-T Details

  • Manufacturer Part Number:

    A6850KLTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-012AA, SOIC-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    26.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

A6850KLTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A6850KLTR-T is -40°C to 150°C.
  • The A6850KLTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor (e.g., 0.1 μF) between the VCC and GND pins to filter out noise.
  • The typical current consumption of the A6850KLTR-T is around 10 mA, but it can vary depending on the operating frequency and output load.
  • The A6850KLTR-T output frequency can be configured by connecting the FREQ pin to a resistor network or a voltage source, following the guidelines in the datasheet.
  • The maximum output current of the A6850KLTR-T is 1.5 A, but it's recommended to limit the output current to 1 A for reliable operation.
