A6861KLPTR-T - Allegro Microsystems

Description: Automotive Three-Phase Isolator Gate Driver

Download A6861KLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

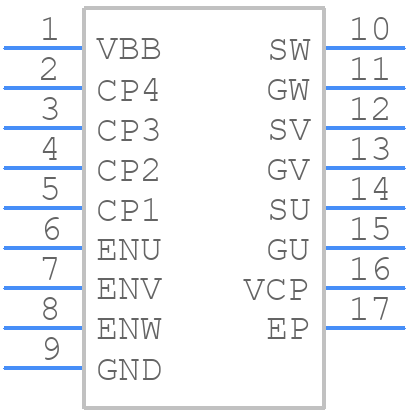

A6861KLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A6861KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom
3D Models
A6861KLPTR-T - Allegro Microsystems - 3D model - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom

A6861KLPTR-T Details

  • Manufacturer Part Number:

    A6861KLPTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1.5 µs

  • Turn-on Time:

    3 µs

  • Width:

    4.4 mm

A6861KLPTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A6861KLPTR-T involves keeping the sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the motor to minimize cable length and noise pickup.
  • The sense resistor value depends on the motor current and the desired current measurement accuracy. A good starting point is to use the recommended sense resistor value in the datasheet, and then adjust based on the specific application requirements.
  • The A6861KLPTR-T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature should not exceed 150°C to ensure reliable operation.
  • To minimize EMI, use a shielded cable for the sense lines, keep the sense lines away from noise sources, and use a common mode choke or ferrite bead to filter out high-frequency noise.
  • A 0.1 μF to 1 μF ceramic capacitor is recommended for the VCC bypass capacitor to filter out noise and ensure stable operation.
