A6B595KLW-T - Allegro Microsystems

Description: ALLEGRO MICROSYSTEMS - A6B595KLW-T - Gate Driver, MOSFET, 20 Pins, SOIC

Download A6B595KLW-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

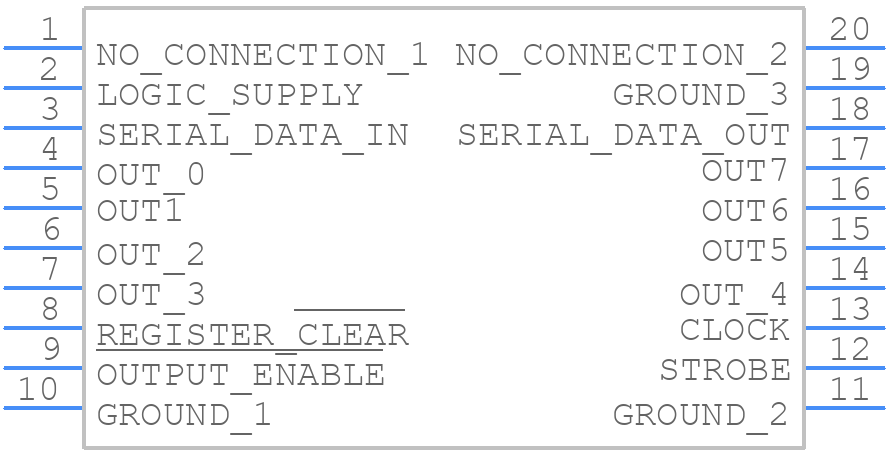

Symbol
A6B595KLW-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A6B595KLW-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LW, 20-Pin SOICW
click to zoom
3D Models
A6B595KLW-T - Allegro Microsystems - 3D model - Small Outline Packages - LW, 20-Pin SOICW
click to zoom

A6B595KLW-T Details

  • Manufacturer Part Number:

    A6B595KLW-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, PLASTIC, SOIC-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Interface IC Type:

    LATCH BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

A6B595KLW-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
  • To ensure accurate current sensing, use a low-impedance current sense resistor (RSENSE) and place it as close to the IC as possible. Also, ensure that the PCB layout minimizes noise and parasitic inductance.
  • Although the datasheet specifies a maximum VCC of 5.5V, Allegro recommends limiting the voltage to 5V to ensure reliable operation and minimize the risk of damage.
  • While the A6B595KLW-T is rated for operation up to 150°C, Allegro recommends derating the device for reliable operation above 125°C. Consult Allegro's application notes for guidance on high-temperature operation.
  • Allegro recommends using a logic analyzer or oscilloscope to monitor the device's output signals and verify proper operation. Consult Allegro's application notes and technical support resources for troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A6B595KLW-T Overview

Use the download button to access the A6B595KLW-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6B59, or try a keyword search, such as Peripheral Drivers
