A70-112-331N126 - EDAC

Description: poe rj45 pinout, rj45 power over ethernet

Download A70-112-331N126 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

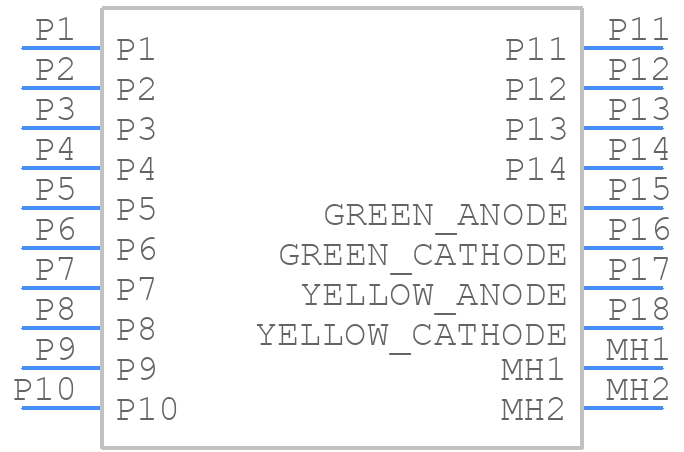

A70-112-331N126 - EDAC - PCB symbol
click to zoom
PCB Footprints

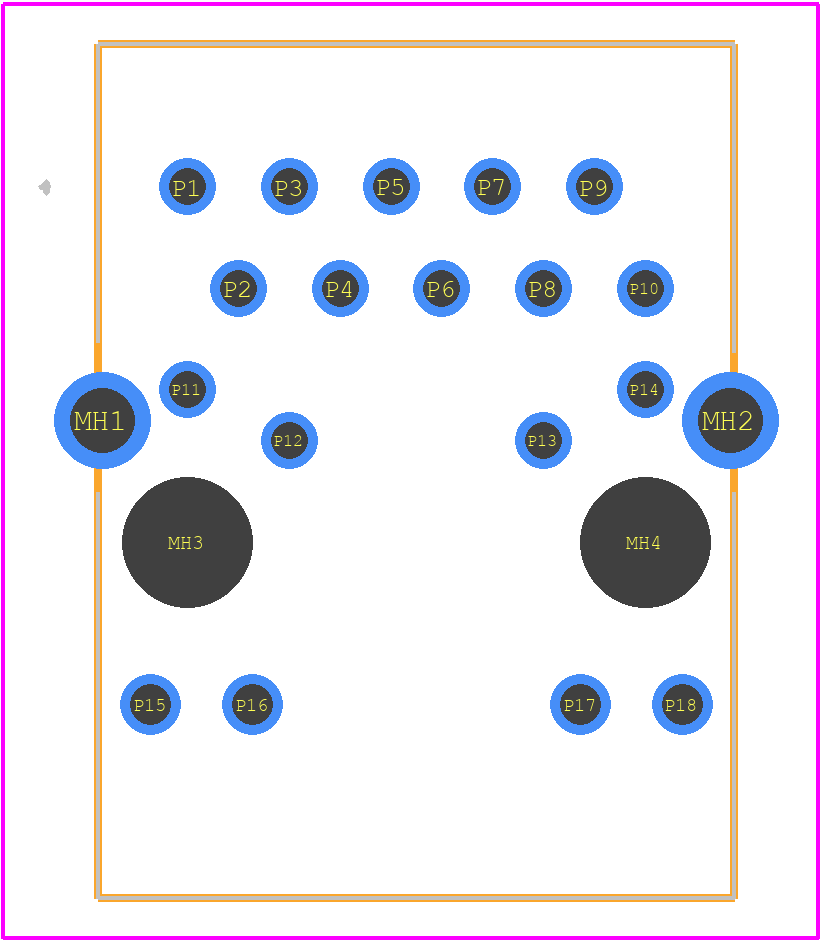

A70-112-331N126 - EDAC PCB footprint - Other - Other - A70-112-331N126-1
click to zoom
3D Models
A70-112-331N126 - EDAC - 3D model - Other - A70-112-331N126-1
click to zoom

A70-112-331N126 Details

  • Manufacturer Part Number:

    A70-112-331N126

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • YTEOL:

    7

  • Additional Feature:

    SHIELDED

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

A70-112-331N126 Frequently Asked Questions (FAQs)

  • The operating temperature range of the A70-112-331N126 connector is -40°C to 105°C.
  • Yes, the A70-112-331N126 connector is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The mating cycle life of the A70-112-331N126 connector is 500 cycles minimum.
  • Yes, the A70-112-331N126 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, automotive, and aerospace environments.
  • Yes, the A70-112-331N126 connector is designed for automated assembly processes, including pick-and-place and wire-termination machines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A70-112-331N126 Overview

Use the download button to access the A70-112-331N126 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A70-1, or try a keyword search, such as Telecom and Datacom Connectors
