A7101CHTK2/T0BC2VJ - NXP

Description: Security ICs / Authentication ICs A71CH Plug & Trust standard temp

Download A7101CHTK2/T0BC2VJ Model
Schematic

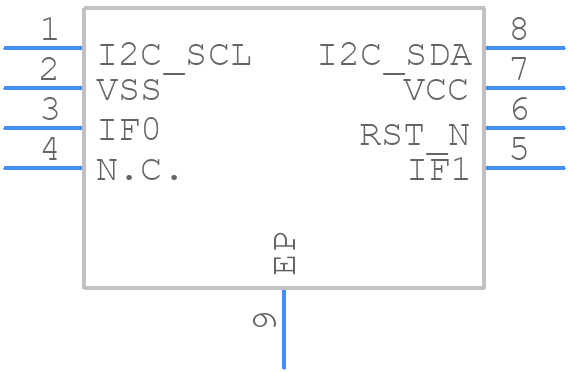

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A7101CHTK2/T0BC2VJ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - A7101CHTK2/T0BC2VJ
click to zoom
3D Models
A7101CHTK2/T0BC2VJ - NXP  - 3D model - Small Outline No-lead - A7101CHTK2/T0BC2VJ
click to zoom

A7101CHTK2/T0BC2VJ Details

  • Manufacturer Part Number:

    A7101CHTK2/T0BC2VJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVSON-8

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    ALSO AVAILABLE WITH 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

A7101CHTK2/T0BC2VJ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A7101CHTK2/T0BC2VJ is -40°C to 125°C.
  • To ensure EMC, follow the guidelines in the NXP application note AN11536, which provides recommendations for PCB layout, component placement, and shielding.
  • The maximum allowable voltage on the VDD pin is 3.6V. Exceeding this voltage may damage the device.
  • The A7101CHTK2/T0BC2VJ has an internal POR and BOD circuit. Ensure that your design meets the power-up and power-down sequencing requirements outlined in the datasheet.
  • Use a 16 MHz crystal oscillator with a load capacitance of 10 pF to 20 pF. Refer to the NXP application note AN11243 for more information.
