- Stock & Prices $ Price & Stock for A7101CHUK/T0BC2HAZ
- Part Number A7101CHUK/T0BC2HAZ
- Manufacturer NXP
- Pin Count 12
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - wlcsp12
- Released Date May 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A7101CHUK/T0BC2HAZ Details
-
Manufacturer Part Number:
A7101CHUK/T0BC2HAZ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
WLCSP-12
-
ECCN Code:
5A992
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
4 Weeks
-
Date Of Intro:
2018-09-27
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Additional Feature:
ALSO AVAILABLE WITH 3.3V NOM SUPPLY
A7101CHUK/T0BC2HAZ Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout guide in their application note AN11529, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The A7101CHUK/T0BC2HAZ has a low-power mode that can be enabled by setting the PMU_CTRL register to 0x01. This reduces the device's power consumption to approximately 10 μA. Additionally, the device can be put into a deep sleep mode by setting the PMU_CTRL register to 0x02, which reduces power consumption to around 1 μA.
-
The A7101CHUK/T0BC2HAZ has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
-
NXP provides guidelines for EMC design and testing in their application note AN11529. This includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic radiation and susceptibility.
-
The recommended crystal oscillator frequency for the A7101CHUK/T0BC2HAZ is 16 MHz or 32 MHz, depending on the specific application requirements. The device can also be configured to use an external clock source.
Trust Checks
Expert Contribution
System Verified
Community Approved
A7101CHUK/T0BC2HAZ Overview

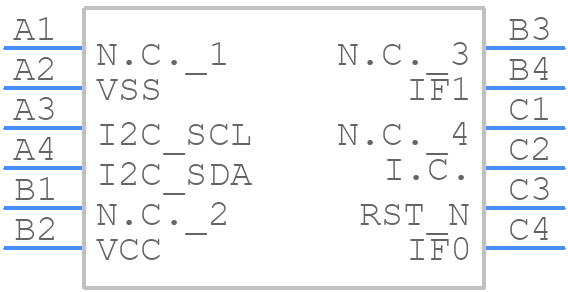

Use the download button to access the A7101CHUK/T0BC2HAZ schematic symbol, PCB footprint, and 3D model.
