A7682E - SIMCOM

Description: LTE CAT1 module A7682E S2-10A23 SIMCOM; LTE-FDD/GSM/GPRS/EDGE; UART, USB2.0, GPIO, ADC, I2C, SIM; FOTA, LBS, SSL; SIM800C/SIM868 compatible0002

Download A7682E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A7682E - SIMCOM - PCB symbol
click to zoom
PCB Footprints

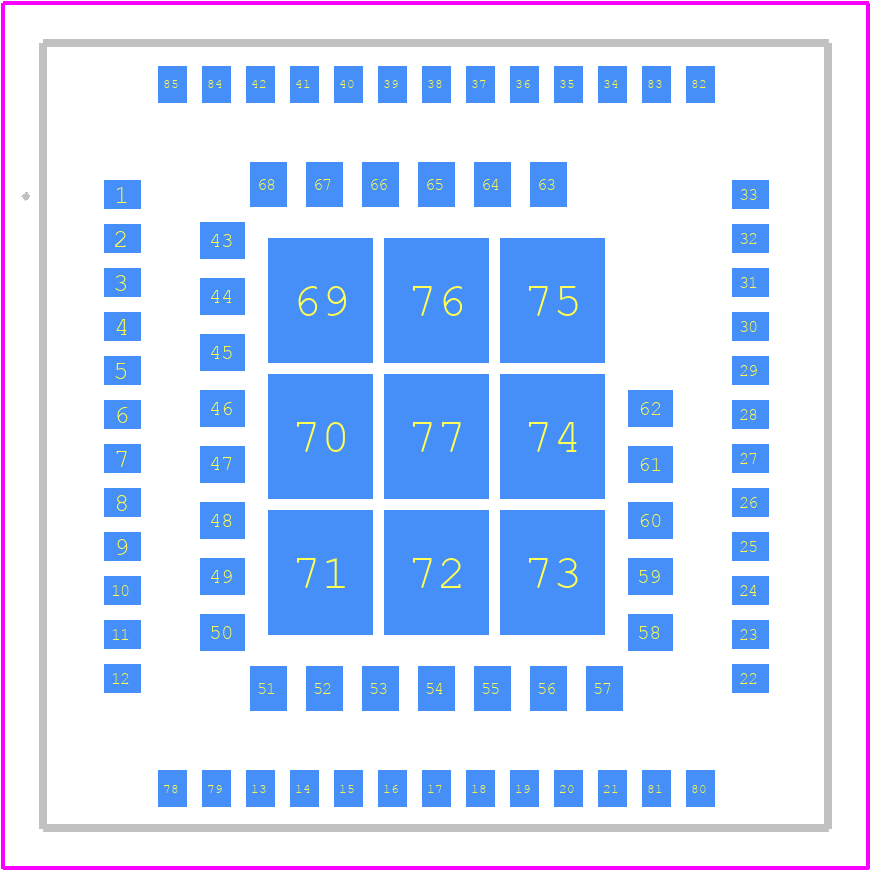

A7682E - SIMCOM PCB footprint - Other - Other - A7682E-2
click to zoom
3D Models
A7682E - SIMCOM - 3D model - Other - A7682E-2
click to zoom

A7682E Details

  • Manufacturer Part Number:

    A7682E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    MODULE-85

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    SIMCom

  • JESD-30 Code:

    S-XXMA-N85

  • Length:

    19.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    85

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    NO

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    19.6 mm

A7682E Frequently Asked Questions (FAQs)

  • The maximum power consumption of the A7682E module is around 2.5W, but it can vary depending on the operating mode and usage scenario.
  • To configure the A7682E module for low power consumption, you can use the AT command 'AT+CFUN=0' to set the module to low power mode. You can also adjust the power mode using the 'AT+CPMS' command.
  • The maximum data transfer rate of the A7682E module is up to 150Mbps for downlink and up to 50Mbps for uplink, depending on the network conditions and configuration.
  • To troubleshoot connectivity issues with the A7682E module, check the module's power supply, antenna connection, and SIM card configuration. Use the 'AT+CGREG?' command to check the module's registration status and the 'AT+COPS?' command to check the module's operator selection.
  • Yes, you can use the A7682E module with a custom antenna, but make sure the antenna is compatible with the module's frequency band and has the correct impedance matching. You may need to perform additional testing and certification for the custom antenna.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A7682E Overview

Use the download button to access the A7682E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A7682, or try a keyword search, such as Cellular Telephone Circuits
