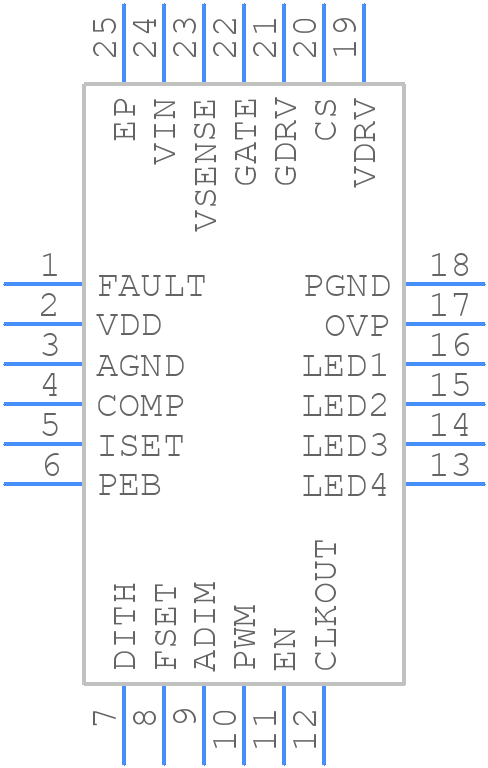

A80601KESJSR - Allegro Microsystems

A80601KESJSR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the A80601KESJSR?
  Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sensitive analog signals away from the digital signals. A good layout practice is to use a star-ground configuration and to minimize the length of the traces.
• How do I ensure the A80601KESJSR is properly thermally managed?
  The A80601KESJSR has a thermal pad on the bottom of the package. Allegro recommends connecting this pad to a thermal plane on the PCB, and using thermal vias to dissipate heat. A thermal interface material (TIM) can also be used to improve heat transfer.
• What is the recommended capacitor value for the VCC filter capacitor?
  Allegro recommends a 10uF to 22uF ceramic capacitor with a voltage rating of 10V or higher for the VCC filter capacitor. The capacitor should be placed as close to the VCC pin as possible.
• How do I handle the output current of the A80601KESJSR?
  The A80601KESJSR has a maximum output current of 25mA. To handle this current, Allegro recommends using a buffer or a transistor to drive the load, and to ensure the PCB traces can handle the current without overheating.
• What is the recommended method for programming the A80601KESJSR?
  Allegro recommends using a 4-wire SPI interface to program the A80601KESJSR. The device should be powered up before programming, and the programming voltage should be within the recommended range of 3.3V to 5.5V.
