A80602KESJSR - Allegro Microsystems

Description: High Power LED Driver with Pre-Emptive Boost for Ultra-High Dimming Ratio and Low Output Ripple

Download A80602KESJSR Model

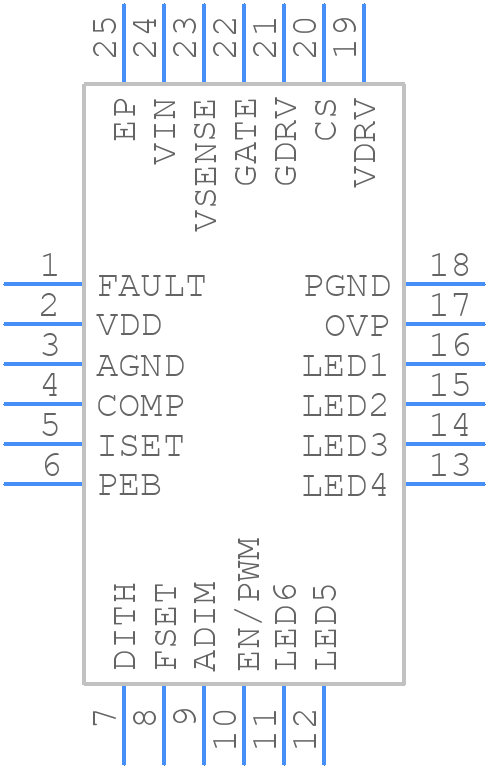

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A80602KESJSR - Allegro Microsystems PCB footprint - Other - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom
3D Models
A80602KESJSR - Allegro Microsystems  - 3D model - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom

A80602KESJSR Details

  • Manufacturer Part Number:

    A80602KESJSR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    1 MHz

A80602KESJSR Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A80602KESJSR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to Allegro's thermal management guidelines in the datasheet and application notes.
  • Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC bypass capacitor. This capacitor should be placed as close as possible to the VCC pin and grounded to the thermal ground plane.
  • Allegro provides application notes and reference designs for specific applications, including BLDC motor control. These resources provide detailed configuration guidelines, including pin configurations, register settings, and firmware examples. Consult Allegro's website and documentation for specific application notes and reference designs.
  • The A80602KESJSR has an operating temperature range of -40°C to 150°C, with a junction temperature (TJ) rating of 150°C. Ensure that the device is operated within these temperature limits to prevent damage or malfunction.
