A80603KESJSR-1 - Allegro Microsystems

Description: 4-Channel Led Driver W/Ultra-Wide Dimming Ratio

Download A80603KESJSR-1 Model

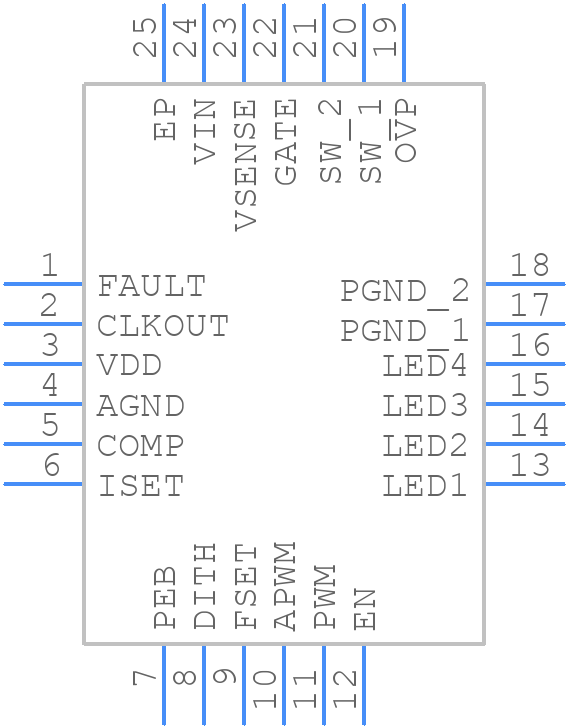

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A80603KESJSR-1 - Allegro Microsystems PCB footprint - Other - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom
3D Models
A80603KESJSR-1 - Allegro Microsystems  - 3D model - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom

A80603KESJSR-1 Details

  • Manufacturer Part Number:

    A80603KESJSR-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.37

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

A80603KESJSR-1 Frequently Asked Questions (FAQs)

  • Allegro recommends a PCB layout with a solid ground plane and a thermal pad connected to the ground plane to improve thermal dissipation. A minimum of 2 oz copper thickness is recommended for the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider derating the device's output current and voltage according to the temperature derating curve provided in the datasheet.
  • Allegro recommends using a high-quality, low-ESR ceramic capacitor with a value of 10 μF to 22 μF, and a voltage rating of at least 25 V, placed as close as possible to the VIN pin.
  • To troubleshoot issues with output voltage regulation, check the input voltage, output current, and output voltage levels using an oscilloscope or a multimeter. Ensure that the input voltage is within the recommended range, and that the output current is within the device's specified limits.
  • Allegro recommends using a high-quality, low-ESR ceramic capacitor with a value of 10 μF to 47 μF, and a voltage rating of at least 6.3 V, placed as close as possible to the VOUT pin.
