Allegro recommends a PCB layout with a solid copper plane on the bottom layer, connected to the GND pin, to improve thermal dissipation. Additionally, keeping the PCB traces short and wide can help reduce thermal resistance.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance sense resistor, and minimize noise coupling. Also, calibrate the device according to the datasheet recommendations and consider using a filter capacitor to reduce noise.
Although the datasheet specifies a recommended VCC range of 3.3V to 5.5V, Allegro recommends not exceeding 5.25V to ensure reliable operation and prevent damage to the device.
The A80604KESJSR-1 is rated for operation up to 150°C, but it's essential to consider the device's power dissipation and thermal management in high-temperature environments. Ensure proper heat sinking and follow Allegro's thermal design guidelines to prevent overheating.
Start by verifying the PCB layout and connections, then check the power supply and voltage levels. Use a oscilloscope to monitor the device's output and input signals. If issues persist, consult Allegro's application notes and contact their technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A80604KESJSR-1 Overview

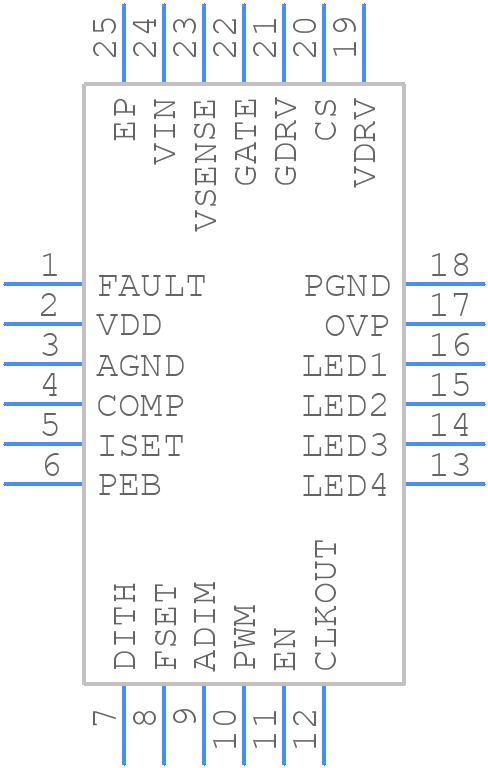

Use the download button to access the A80604KESJSR-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8060,
or try a keyword search, such as Display Drivers
