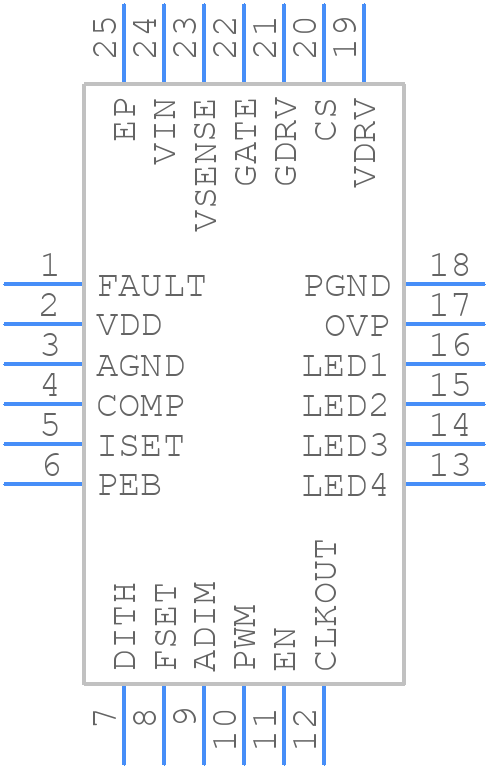

A80604KESJSR - Allegro Microsystems

A80604KESJSR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
• How do I ensure accurate current sensing with the A80604KESJSR?
  To ensure accurate current sensing, Allegro recommends using a low-impedance PCB layout, minimizing the distance between the sense lines and the device, and using a Kelvin connection to the sense resistor. Additionally, the sense resistor should be placed as close as possible to the device.
• What is the maximum allowed voltage on the VCC pin?
  Although the datasheet specifies a maximum VCC voltage of 5.5V, Allegro recommends limiting the voltage to 5V to ensure reliable operation and to prevent damage to the device.
• How do I handle ESD protection for the A80604KESJSR?
  Allegro recommends using a human-body model (HBM) ESD protection device, such as a TVS diode, on the input lines to protect the device from electrostatic discharge. Additionally, proper PCB layout and handling practices should be followed to minimize ESD risks.
• What is the recommended operating temperature range for the A80604KESJSR?
  Although the datasheet specifies an operating temperature range of -40°C to 150°C, Allegro recommends operating the device within a range of -20°C to 125°C for optimal performance and reliability.
