A80804KETASR-1 - Allegro Microsystems

Description: High-Current Four-Channel Automotive LED Controller

Download A80804KETASR-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

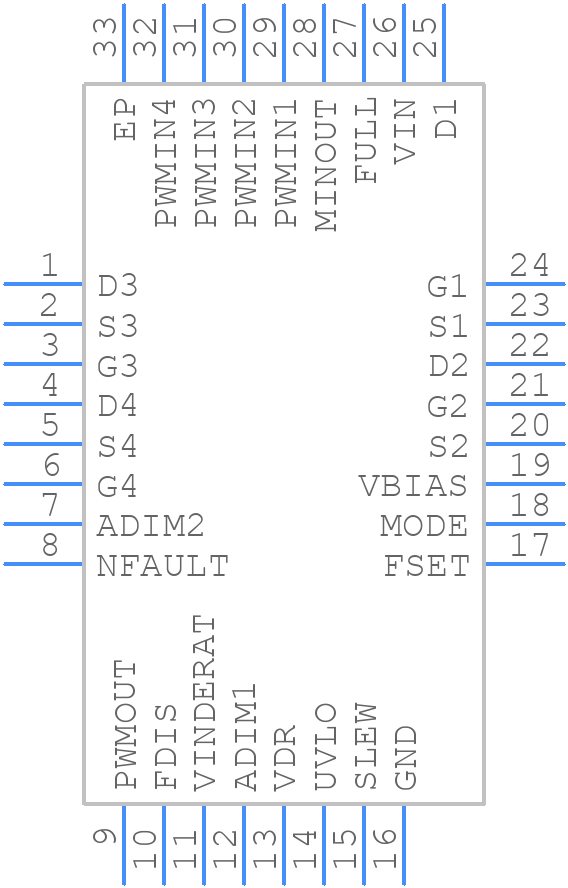

A80804KETASR-1 - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin 5 mm × 5 mm QFN with exposed thermal pad and wettable flank (suffix ET)
click to zoom
3D Models
A80804KETASR-1 - Allegro Microsystems  - 3D model - Quad Flat No-Lead - 32-Pin 5 mm × 5 mm QFN with exposed thermal pad and wettable flank (suffix ET)
click to zoom

A80804KETASR-1 Details

  • Manufacturer Part Number:

    A80804KETASR-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Terminal Finish:

    Tin (Sn)

A80804KETASR-1 Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The A80804KETASR-1 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
  • Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure accurate current sensing. The specific filter configuration may vary depending on the application and noise environment.
  • Calibration involves adjusting the zero-current offset and gain of the device to match the specific application requirements. Allegro provides a calibration procedure in their application note AN296068, which involves applying a known current and adjusting the device's internal registers to achieve accurate measurement.
  • Although the datasheet specifies a recommended VCC range of 3.3 V to 5.5 V, Allegro recommends not exceeding 5.25 V to ensure reliable operation and prevent damage to the device.
