Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
The A81407KLVATR-1 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow Allegro's thermal management guidelines in their application notes and datasheet.
Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC filter capacitor to ensure stable operation and minimize noise.
Yes, the A81407KLVATR-1 is designed to operate in high-vibration environments. However, ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot output signal issues, check the device's power supply, ensure proper PCB layout and routing, verify the output pin connections, and consult Allegro's application notes and datasheet for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A81407KLVATR-1 Overview

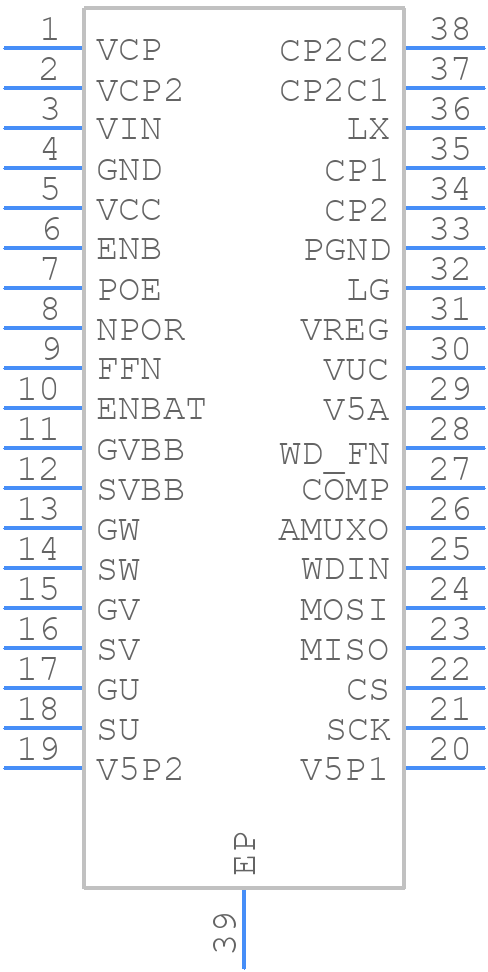

Use the download button to access the A81407KLVATR-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8140,
or try a keyword search, such as Switching Regulator or Controllers
