A8508GLPTR-T footprint, schematic symbol and 3D model by Allegro Microsystems

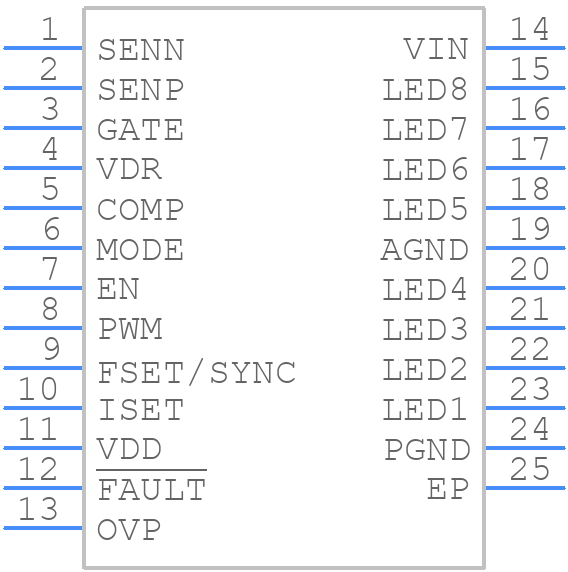

Symbol

PCB Footprints

3D Models

A8508GLPTR-T Details

A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference design and layout guidelines in their application notes.
Use a low-impedance current sense resistor (CSR) and ensure the CSR is placed close to the IC. Also, use a Kelvin connection to the CSR to minimize parasitic inductance and resistance.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
Ensure good thermal conduction by using a heat sink or thermal pad, and avoid blocking airflow around the device. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
A 10uF to 22uF ceramic capacitor is recommended for VCC bypassing, placed as close to the VCC pin as possible.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the A8508GLPTR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A8508, or try a keyword search, such as Display Drivers
