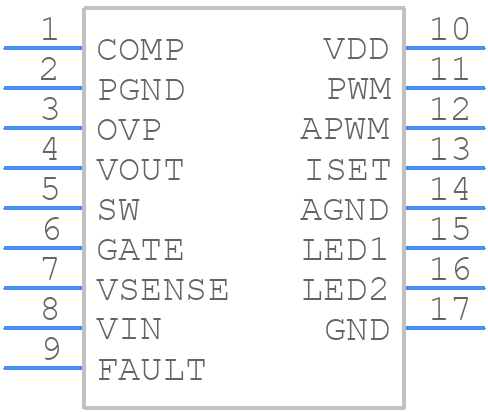

A8518KLPTR-T - Allegro Microsystems

A8518KLPTR-T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Allegro recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, keeping the device away from heat sources and using thermal vias can help reduce thermal resistance.
• How do I ensure accurate current sensing with the A8518KLPTR-T?
  To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance sense resistor, and minimize noise coupling. Also, calibrate the device according to the datasheet recommendations and consider using a filter capacitor to reduce noise.
• What is the maximum allowable voltage on the VCC pin?
  Although the datasheet specifies a recommended VCC range of 3.3 V to 5.5 V, Allegro recommends not exceeding 5.25 V to ensure reliable operation and prevent damage to the device.
• Can I use the A8518KLPTR-T in a high-temperature environment?
  While the A8518KLPTR-T is rated for operation up to 150°C, Allegro recommends derating the device's performance at high temperatures. Consult the datasheet and application notes for guidance on thermal derating and ensure proper thermal management.
• How do I troubleshoot issues with the A8518KLPTR-T?
  Start by verifying the PCB layout and component placement. Check for proper power supply decoupling, sense resistor value, and filter capacitor placement. Use an oscilloscope to monitor the output signals and verify that they are within the expected range. Consult the datasheet and application notes for troubleshooting guidelines.
