A8519KETTR-R - Allegro Microsystems

Description: Quad String Boost Led Driver For Backlighting

Download A8519KETTR-R Model

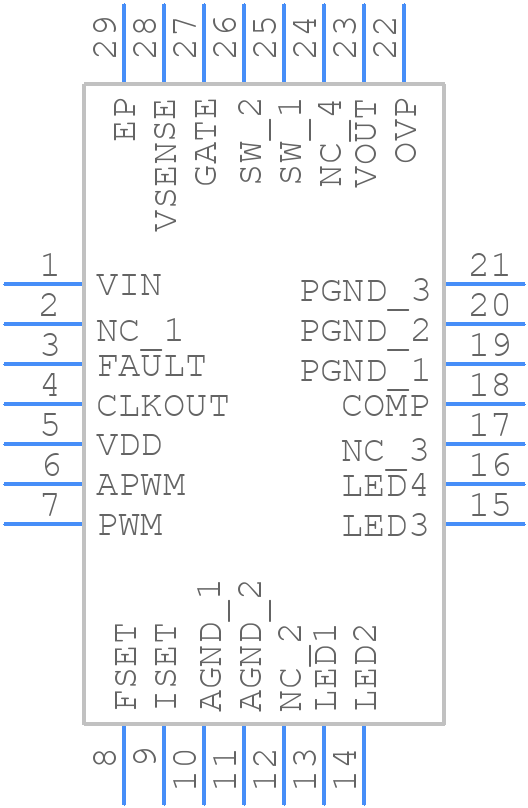

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A8519KETTR-R - Allegro Microsystems PCB footprint - Other - Other - A8519KETTR-R
click to zoom
3D Models
A8519KETTR-R - Allegro Microsystems  - 3D model - Other - A8519KETTR-R
click to zoom

A8519KETTR-R Details

  • Manufacturer Part Number:

    A8519KETTR-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • fmax-Min:

    1 MHz

A8519KETTR-R Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in the application note AN296068, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The maximum allowable current can be calculated using the device's thermal resistance (RθJA), maximum junction temperature (Tj), and ambient temperature (Ta). Allegro provides a thermal calculation worksheet in the datasheet to help with this calculation.
  • Allegro recommends a 10 μF to 22 μF ceramic capacitor with X7R or X5R dielectric for the VCC bypass capacitor, placed as close as possible to the VCC pin to minimize noise and ensure stable operation.
  • Allegro provides a troubleshooting guide in the application note AN296070, which covers common issues, diagnostic techniques, and repair procedures to help engineers identify and resolve problems with the A8519KETTR-R.
  • Yes, the A8519KETTR-R is compatible with lead-free soldering processes, and Allegro provides guidance on lead-free soldering in the application note AN296071.
