SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2700 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
4.4 mm
A8582KLPTR-T Frequently Asked Questions (FAQs)
Allegro provides a recommended PCB layout in the application note AN296070, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Allegro provides a configuration guide in the datasheet, which includes information on setting the device's operating mode, configuring the output stage, and programming the device's registers. Additionally, Allegro's technical support team can provide customized configuration guidance for specific applications.
The A8582KLPTR-T has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow Allegro's recommended PCB layout guidelines to minimize thermal resistance.
Allegro provides a troubleshooting guide in the datasheet, which includes common issues, symptoms, and solutions. Additionally, Allegro's technical support team can provide assistance with debugging and troubleshooting specific issues.
The A8582KLPTR-T is designed to meet EMI standards, but proper PCB layout, component selection, and shielding are still essential to minimize EMI. Allegro provides EMI-related guidelines in the application note AN296070 and recommends following industry-standard EMI mitigation techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8582KLPTR-T Overview

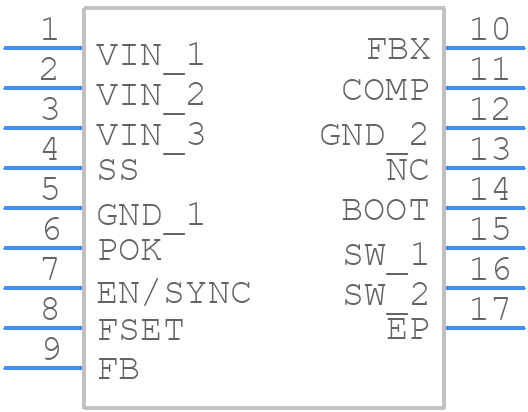

Use the download button to access the A8582KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8582,
or try a keyword search, such as Switching Regulator or Controllers
