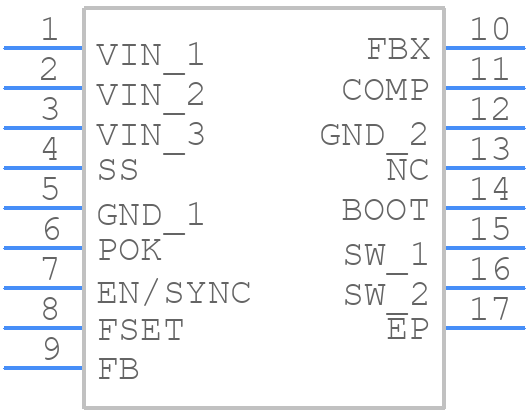

A8583KLPTR-T - Allegro Microsystems

A8583KLPTR-T Details

• Manufacturer Part Number:

  A8583KLPTR-T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  LEAD FREE, EIAJ, MO-153ABT, TSSOP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Allegro MicroSystems LLC

• YTEOL:

  8

• Additional Feature:

  ALSO AVAILABLE ADJUSTABLE OUTPUT AS LOW AS 0.8V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  4.7 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6.45 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2700 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4.4 mm
